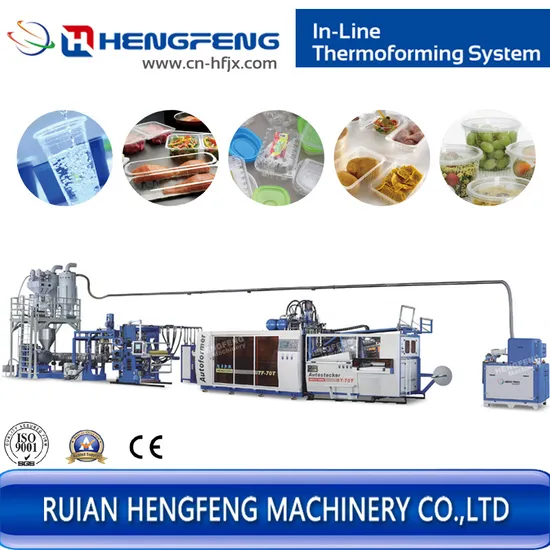

Fully Automatic Inline PP HIPS Sheet Extrusion Line and Thermoforming Machine

Product Description

Fully Automatic Inline PP HIPS Sheet Extrusion line and Thermoforming Machine
Main Technician Parameter:

Extruder Main Technical Parameter
Screw Diameter	Φ120mm
Screw L/D	33:1
Max.Output	500kg/hr
Extruding motor power	160kw
Valid Die-head Width	850mm
Material Thickness Range	Min0.2mm;Max2.5mm
Roller Diameter	Φ450x1000mm
Thermoformer Main Technical Parameter
1- Max. Forming Area	685×320mm
2- Max. Forming Height	180mm
3-Mold Clamping force	350Kn
4-Sheet Width	Max 720mm; Min 550mm
5-Sheet Thickness	0.35mm-2.5mm
6-Heater Specification	Ceramic Heater up and down 130kw
7-Heater Control	Omron Temperature module and PLC match with control
8-Forming Method	Air pressure forming & driven by Cam
9-Operation Method	Fully automatic with touch screen control
10-Material Feeding	Servo Motor 4.4kw
11-Max. Sheet Rolling Diameter	Φ1200mm
12-Air Pressure	0.7-0.85mpa
13-Water Consumption	50L/min
14- Air Consumption	3000L/min
15- Max.Speed	35 Cycles/min
16- Power (Three Phase Four Wire)	380V,50Hz,3Phase
17- Main Motor Power	11kw
18- Scrap Rewinding Motor Power	0.55kw
19- Machine Weight	13000kg
20- Machine Dimension	(L)11000×(W)3650×(H)3500mm

Packaging shipping:
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder,Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
Please contact us if interesting further informations: Cell/Wechat/Whatsapp

---
