type 1+2 60ka lightning SPD surge protective device

Product Description

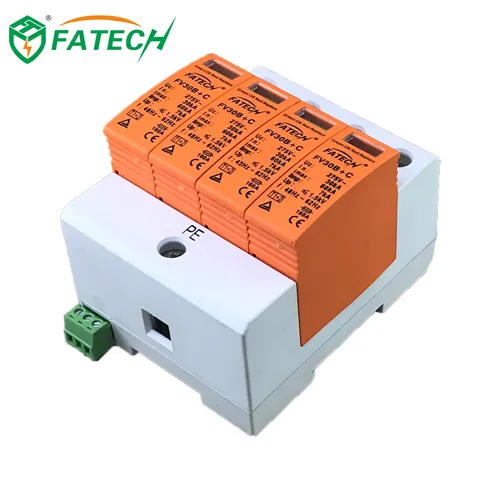

1. Surge arrester for low-voltage power system Characteristic FV30B+C/4--275 (S)
-Surge arresters onsisting of a base part and MOV plug-in protection modules. -High energy MOV inside. -Low residual voltage and quick response. -Reliable control thanks to Thermo Dynamic Control disconnector. -With remote signaling contact for control device. -Fault indication via red mark in the inspection window. -Protection mode: L1, L2, L3-PE, N-PE.
2. FV30B+C/4--275 (S) surge arrester are suitable for lightning and surge protection in AC 50/60Hz, 220/380V.
3. APPLICATION of surge arrester FV30B+C/4--275 (S):
AC power line of house, bank, telecom tower and so on.
4. Dimension, circuit and installation of type1+2 surge protective device (classI+II surge aresters) FV30B+C/4--275 (S):

Model No.: FV30B+C/4--275 (S)
Max. continuous AC voltage	Uc	V	275
Requirement class to DIN EN 61643-1: 2005			Class B+C
Nominal Discharge current(8/20μ s)	In	kA	30
Max. discharge current (8/20μ s)	Imax	kA	60
Impuse discharge current (10/350μs)	Iimp	kA	7
Voltage protection level (at In)	Up	kV	<=1.5
Response time	tA	ns	25
Recommended back-up fuse		A	160
Operation temperature range			-40 ~ +85degree
Degree of protection			IP20
Remote control contacts			optional

Workshop
Certifications
FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.

FAQ:

1. Q: Could l know which advantages do you have please?

A: Independent test center, TUV, Patent certifications; 15 years export experience in the overseas market; good technical service and support.

2. Q: Are you a lightning surge protectors factory or trading company?
A: We area manufacturer which is ISO 9001-2008 quality system on R&D, production and sales of surge arrester.

3. Q: Warranty and return?

A: We supply five-years warranty on surge protective devices and own the best after-sale service team, if any
problem happens, our team will do our best to solve it for you.

4. Q: What's the delievery time?

A: It is usually about 15 days after receiving the payment and confirmed the order, but specific time should
be based on the order quantity.

---
