Customized Camera Lens Ptical Component Manufacturer Cost-Effective UV Lens with OEM Service

Product Description

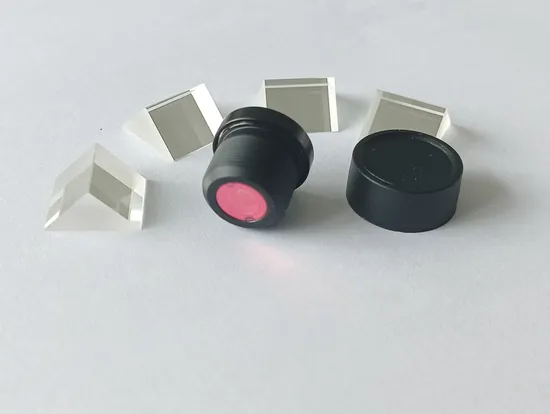

Sensor 1/2.7'' F/NO 2.6 FBL 6.7mm TTL 22mm Car Lens of Optical Lens

NOTES		SPECIFICATION
Sensor		1/2.7''
Resolution		>3M
Max Image Circle		6.8mm
Focal length(EFL)		4.56mm±5%
F/NO(Infinite)		2.6±10%
FBFL		6.7±0.3mm
Objective Distance		400mm-
FOV Angle		D:91° H:72° V:52°
Optical Distortion		-28%
Chief Ray Angle		<14°
TTL		22±0.3mm
Relative Illumination		>70%
Head Size		φ14±0.1
Number of Elements and Type		4G+IRCUT650

Package:
Vacuum packaging to ensure the condition of the product during transportation
Company Information:

JIARUI is mainly engaged in the research and development of optical lenses, prisms, mirrors, large,medium and small lenses, optical lenses, photoelectric module technology. It is an optical lens based,core of optical module assembly, one modern science and technology enterprises of research and development, design, production .The main business scope is divided into five major subjects(optical lenses, optical lenses, optical integration, optical components, optical modules) and seven fields(vehicle, UAV field, biometrics field, AR/VR field, smart home security field, medical equipment field, visual sensor automation field.
FAQ Q1 When the goods will be delivered?
A1 Stock samples will be delivered within 3 days. For 1k lenses, 15-20days.
Q2 How do you control the products quality?
A2 No dust working enviroments, four times quality checking during production process.Use imported high-precision testing equipment.
Q3 What's your payment term?
A3 T/T is acceptable as usual.
Q4 What is the delivery methods?
A4 The goods can be delivered by sea or by air, by express
Q5 Is OEM & ODM available?
A5 Yes, OEM and ODM are both available
Q6 What's your minimum order quantity for this item?
A6 1 unit.
Q7 What is the Warranty for the products?
A7 If there is a quality problem, please kindly provide the pictures to show the problem by email. We will provide the compensation (replacements or pay back )according to the email.
Q8 Can free sample be available before making an order?
A8 Your samples fee will be refunded when you place volume order.

---
