API 8c/8A Jz Series Deadline Anchor for Drilling Rig

Product Description

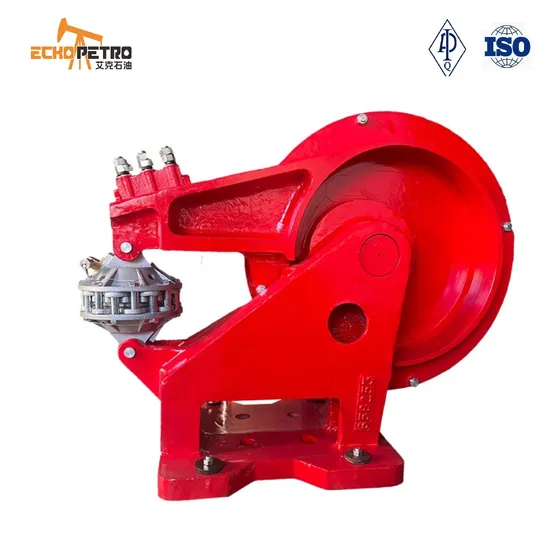

JZ Deadline Anchor is a mechanism that converts deadline pull of a drilling rig into liquid pressure. It is one of the important components of weight indicating system, which can be used with JY248A sensor made by the company to work as the primary instrument, and then makes a weight indicating system together with weight indicator and recorder.
Technical Specifications
1. Maximum deadline pull: 340kN
2. Sensator: JY248A
3. Error of output pressure f deadline anchor: ±1%
4. Size: 1205mm×1095mm×400mm
5. Weight: 1100kg
6. Slickline diameter: Φ35mm,Φ32mm
Main technical specification for deadline anchor (Weight Indicator)

Model of weight indicator	Specification of deadline anchor	Mounting Type Welding(W) Casting(C)	Max deadline pulling force (pounds)	Deadline numbers		Max load (pounds)	Load Sensor (Mpa)	Drilling Rig
JZ900	JZG72	Leg (W)	161862 (720 Kn)	14		2266068	9	12000 m
				12		1942344
	JZG72(AO1)		161862 (720 Kn)	14		2266068		9000 m
				12		1942344
	JZG72(AO2)		161862 (720 Kn)	14		2266068		E551 Sensor
				12		1942344
JZ900A	JZG72A	Floor (W)	161862 (720 Kn)	14		2266068	9
				12		1942344
JZ700	JZG60	Floor (W)	134885 (600 Kn)	14		1888390	9
				12		1618620
JZ700A	JZG56	Leg (W)	125893 (560 Kn)	14		1762502	7.49
				12		1510716
JZ600	JZG46	Leg (W)	103412 (460Kn)	14		1447768	6.83	Left hand model
				12		1240944
JZ600A	JZG46A	Leg Welding(W)	103412 (460Kn)	14		1447768	6.83	E551Sensor, Left hand
				12		1240944
JZ600B	JZG46B	Leg (W)	103412 (460Kn)	14		1447768	6.83	Right Hand
				12		1240944
JZ500	JZG42	Floor(C)	94420 (420Kn)	12		1133040	6
				10		944200
JZ500A	JZG41	Leg (C)	92172 (410Kn)	12		1106064	6.83
				10		921720
JZ500D	JZG42A	Leg (C)	94420 (420Kn)	12		1133040	6.83	Left hand
				10		944200
JZ400	JZG35	Floor(C)	78683 (350Kn)	12		944196	6
				10		786830
				8*		629464
JZ400B	JZG34A	Leg (C))	76435 (340Kn)	12		917220	6
				10		764350
JZ400C	JZG34B	Leg (W)	76435 (340Kn)	12		917220	6
				10		764350
JZ400D	JZG34C	Leg (W)	76435 (340Kn)	12		917220	6	E543Sensor
				10		764350
JZ400E	JZG35A	Floor(W)	78683 (350Kn)	12		944196	6	Crown block
				10		786830
				8		629464
JZ300	JZG30	Leg (C)	67443 (300Kn)	12	809316		6
				10	674430
JZ300A	JZG30A	Leg (W)	67443 (300Kn)	12	809316		5.2	E551Sensor
				10	674430
JZ250	JZG24	Floor(C)	53954 (240Kn)	12*		647448	6
				10		539540
				8		431632
JZ200	JZG20	Floor(C)	44962 (200Kn)	10		449620	6
				8		359696
				6*		269772
JZ150A	JZG18A	Floor(C)	40466 (180Kn)	10		404660	6
				8		323728
				6		242796
JZ150	JZG18	Leg (C)	40466 (180Kn)	10*		404660	6
				8		323728
				6		242796
JZ100	JZG15	Leg (C)	33721 (150Kn)	10*		337210	6
				8		269768
				6		202326
JZ100A	JZG15A	Floor(C)	33721 (150Kn)	10*		337210
				8		269768
				6		202326
JZ60	JZG10	Pull line	33721 (150Kn)	8		337210	4.2
				6		269768
				4*		202326
JZ40	JZG10A	Leg	22481 (100Kn)	6		134886	6
				4		89924
JZ82	JZG13	Pull line	30709 (136.6Kn)	6		184254	6
JZ75	JZG12	Pull line	28101 (125Kn)	6		168606	5.2

Q:How can I place order?
A: You can contact us by email or social media like WhatsApp on the order detail or place order on line.
Q:How about the payment?
A: For new clients, advance payment(30%-100% of total amount) is required, the balance need to be paid before the delivery after your inspection.
Q:How can I pay you?
A: By T/T (Telegraphic Transfer) or L/C (Letter of Credit). After you receive the PI, you can make the payment through your bank as per the terms mentioned in PI.
Q: What's the order procedure?
A: First we discuss order details, production details by email ,TM or other social media; then we issue you an PI for your confirmation. You will be requested to make full payment or deposit before we go into production.After we get the deposit, we start to process the order. Depending on the products you order, we usually a couple of days or even moths to complete production if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we shall arrange the shipment for you.
Q: How do you deal with defective products received by the clients?
A: If there are some defective items, we usually credit to our customer or replace them in next shipment.

---
