Basic Info.
Certification
CCC, EEC, CE, COC, EPA, DOT
Braking Mode
Front and Rear Disc Brakes
Cooling Method
Oil Cooling
Transport Package
Cartons, Wooden Boxes

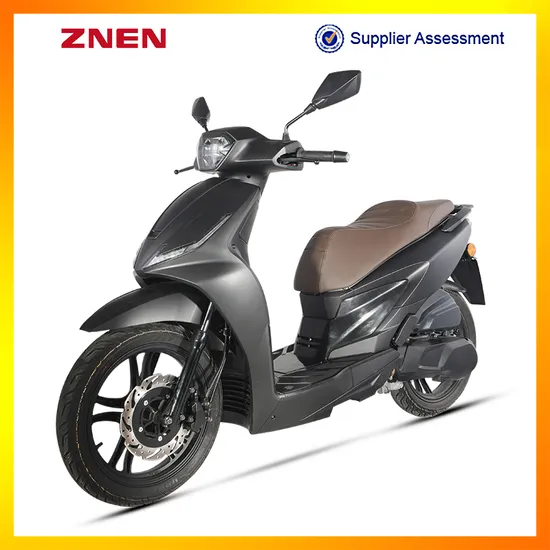

Product Description
| Model | ZN125T-71 | ZN150T-71 | ZN175T-71 |
| Top Speed(km/h) | 95 | 102 | 108 |
| L×W×H(mm) | 1990*690*1150 | 1990*690*1150 | 1990*690*1150 |
| Wheelbase(mm) | 1350 | 1350 | 1350 |
| N.W/G.W(kg) | 114 | 116 | 116 |
| Displacement(cc) | 124.6 | 149.6 | 168.9 |
| Max.Output kw(r/min) | 7.5/8000 | 8.5/8000 | 9/7500 |
| Max.torque.N.m(r/min) | 10/6500 | 11.5/6000 | 13/5500 |
| Brake Mode | Disc/Disc | Disc/Disc | Disc/Disc |
| Tank Capacity(L) | 7.0 | 7.0 | 7.0 |
| Front Tire | 110/70-16 | 110/70-16 | 110/70-16 |
| Rear Tire | 110/70-16 | 110/70-16 | 110/70-16 |
1. Appearance
1.1 lamps: all lamps are LED, fashionable design and good visual.
1.2 seat: is fashionable, and high and low drop design can bring excellent driving experience.
1.3 instrument: it uses mechanical combinate with digital instrument, which is rich in strong movement atmosphere.
1.4 lock: anti-theft central control lock, more safe and convenient.
1.5 braking: equipped with high-performance CBS braking system, good braking performance, stable and reliable.
1.6 tyre: 110 / 70-16 vacuum tires are equipped at the front and rear to improve the driving stability and trafficability.
1.7 fuel tank: 7-Liter fuel tank, which can meet the long-distance riding.
1.8 air intake: air filter and engine side cover adopt high-level air intake at the same time, which can effectively improve the pollution of engine air intake and extend the service life of engine.
1.9 muffler: aluminum decorative cover, full of sense of movement.
1.10 storage: a full helmet can be placed. The front part of the storage box is designed with a 5v2a quick charging USB interface
1.11 rear carrier: aluminum alloy rear carrier is adopted, which can be equipped with more than 25L rear box.
2. Engine
2.1 it is equipped with a newly independently developed high-power engine, which adopts integrated cylinder head design, high-strength forged cam, roller type valve rocker arm and lightweight piston to make the engine run more smoothly and keep a strong heart at all times.
>>
