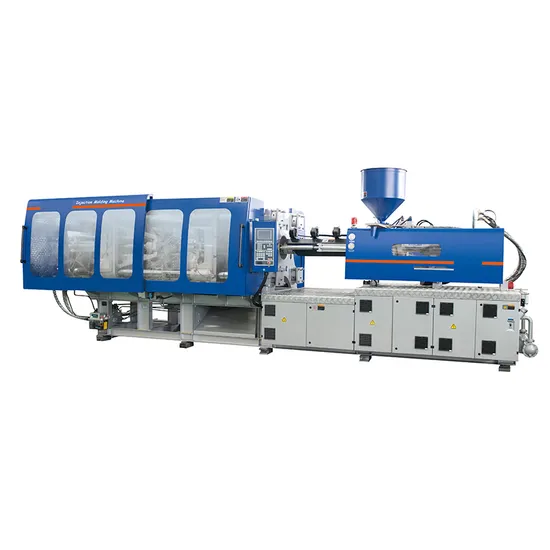

UV/360 PVC Injection Molding Machine

US$1.00-2.00 1 Piece (MOQ)

Basic Info.

Model NO.
UV/360
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden Pallet and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
200/Y

Product Description

PVC IMM :
Cooling fan installed on barrel,Widened protective door.,Increased motor.
The main production of PVC material pipe fittings
Parameters:
PVC STYLE SPECIFICATION UV/360
SCREW TYPE A B C D
Injection Unit
Screw diameter mm 60 67 70 75
Screw L/D ratio L/D 24.6 22 21.1 19.7
Shot volume(theoretical) CM3 947 1181 1289 1480
Injection weight(PVC) g 1206 1505 1642 11886
Injection rate g/s 389 484 529 608
Injection pressure MPA 231 186 170 148
Screw speed rpm 120
Clamping Unit
Clamping force KN 3600
Open stroke mm 675(705)
Space between tie-bars(W*H) mm 680*680
Max mould height mm 720
Min mould height mm 250
Ejector stroke mm 180
Ejector force KN 70
Others
Max pump pressure MPA 16
Pump Motor power KW 45.2
Heating power KW 24.7
Numbers of heating area Segment 4+1
Machine dimension(L*W*H) M 7.38*1.95*2.55
Oil tank cubage L 510
Machine weight TON 13.5

Configuration List:
Name Brand
Computer KEBA(AUSTRIA) or EST
Servo Drive INOVANCE(CHINA)
Servo Pump SUNNY(USA) / SUMITOMO(JAPAN)
Servo Motor PHASE(ITALY)
Electro-hydraulic Proportion valve HNC (Taiwan)
Stroke transducer NOVO or Miran(GERMANY)/GERFRAN(ITALY)
Breaker Schneider (FRANCEN)/Siemens(GERMANY)
Contacts Schneider (FRANCEN)/Siemens(GERMANY)
Switch Schneider (FRANCEN)/Siemens(GERMANY)
Hydraulic Direction Valve Vickers (USA) or Rexroth (GERMANY)
Plasticing Motor DINAMIC(ITALY) or STF(ENGLAND)
Hydraulic Hose MANULI(ITALY)/CONTINENTAI(GERMANY)
Plasticing speed sensor OMRON
Sealing ring HALITE or TREIIEBORG(UK or GERMANY)
