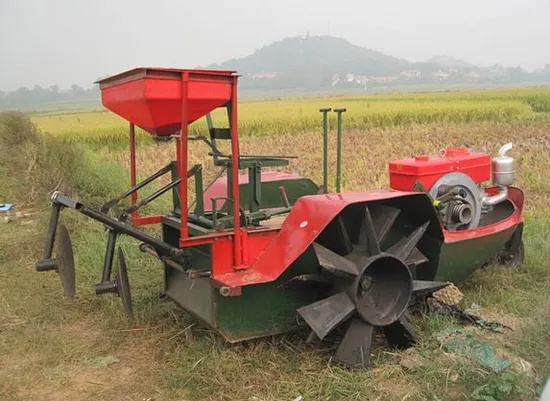

High quality paddy field motor driven boat tractor for sale
Model
| AM-22A
|
Working efficiency
| 0.8-1ha./h
|
Engine
| ZH1115G2 diesels
|
Power
| 16.2kw( 22HP), 2200rpm
|
Weight
| 760kg(with power and disc plough)
|
Wheel track
| 1250mm
|
Wheel base
| 1670mm
|
Driving wheel vertical amplitude modulation
| 300mm
|
Guide wheel radius
| 200mm
|
Suspension lifting device
| Ratchet pendulum rod disc control
|
Power clutch control device
| Belt clutch
|
minimum turning radius
| 1.75m
|
Min ground clearance
| 145-245mm(adjustable)
|
Diameter of disc plough
| 205mm
|
Min working depth
| 180mm
|
Min working width
| 480mm
|
Diameter of rubber driving wheel
| 375mm
|
Diameter of water paddy wheel
| 365mm
|
Max working speed
| 3.5m/s
|
Working efficiency
| 0.53hm2/h
|
Oil consumption
| 180±20g/h
|
Walking speed
| 20-30km/h, max.40-50km/h
|
Packed size
| 2600x1600x1200mm
|
Cultivating depth
| 230±78mm
|
Capacity of fertilizer tank
| 60L
|
fertilizer apparatus
| gravity type
|
Fertilization line number
| 6 lines
|
Distributing regulation mode
| Rod type gate
|
