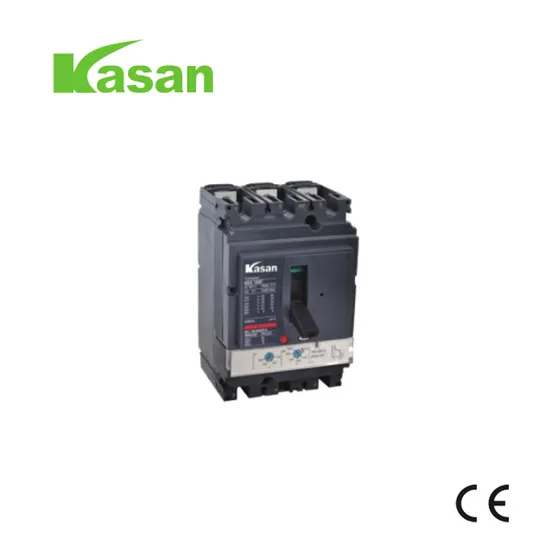

Nsx Series Moulded Case Circuit Breaker(F160)

Product Description

APPLICATIONS:
NSX moulded case circuit breaker is one of the most advanced type breakers in the world, which adopts international advanced design and manufacture technology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A. It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage.

Type	Rated Current (A)	Pole number	Rated Insultating Voltage(V)	Rated Opreating Voltage(V)	Arcing Over Distance(mm)	Ultimate Short Circuit Breaking Capacity (KA)	Services Short Circuit Breaking Capacity (KA)	Operation performance
								ON	OFF
NSX-100D	12.5, 16,20, 25,32, 40,50, 63,80, 100	3,4	950	690	0	18	18	1500	8500
NSX-100N						25	25
NSX-100H						70	70
NSX-100L						150	150
NSX-160D	16,20, 25,32, 40,50, 63,80, 100,125, 160					25	25	1500	7000
NSX-160N						36	36
NSX-160H						70	70
NSX-160L						150	150
NSX-250D	160,180, 200,225 ,250					25	25	1000	7000
NSX-250N						36	36
NSX-250H						70	70
NSX-250L						150	150
NSX-400D	200,225, 250,300, 315,400					35	35	1000	4000
NSX-400N						45	45
NSX-400H						70	70
NSX-400L						150	150
NSX-630D	315,350 ,400,500, 600,630					35	35	1000	4000
NSX-630N						45	45
NSX-630H						70	70
NSX-630L						150	150
NSX-800L	800,1000, 1250					150	500	2000	5000
NSX-1000L						150	500
NSX-1250L						150	500

---
