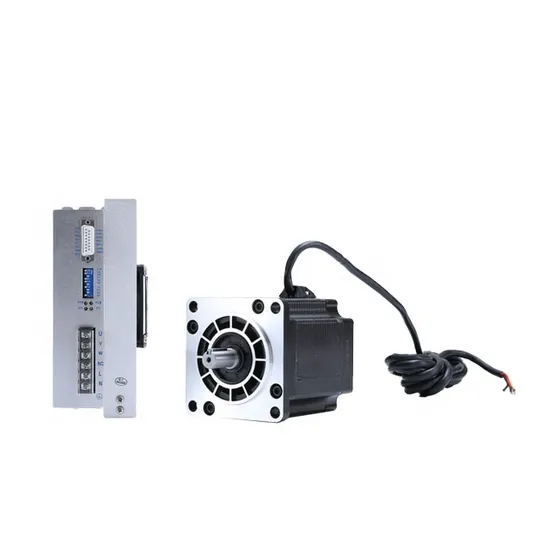

High Torque NEMA 42 CNC Stepper Motor with Integrated Driver

Product Description

CNC stepper motor 8Nm 4.3A has such advantage as high efficiency,energy-saving,low noise, low vibration, "high start torque","low start current" and reliable performance.They are easy for installation and maintenance
CNC stepper motor, 8Nm, 4.3A Specifications:

Model	FHB31112
Step Angle(°)	1.2
Length L(mm)	124.5
Holding torque(N.m)	8.0
Current (A)	4.3
Rotor inertia (g.cm2)	6000
Weight (kg)	5.0
Voltage (V)	AC110~220V
Matched driver	HBQ30722A
Step accuracy	5%
Temperature	80 degree Max
Environmental temperature	-20 ~ +50 degree
Insulation resistance	100MΩ Min 500 V DC
Withstand voltage	500V AC 1 minute
Shaft Radial Play:	0.06mm Max.
Shaft Axial Play	0.08 mm Max.

Driver Features High performance, low price Provides 16 kinds of microstep selection,resolution can be set to 60000pulse/rev Once the pulse stops for 100ms,the phase current will automatically reduce to preset value Bipolar constant current chopper control Photocoupler isolated input/output Adjustable drive current divided into 16 grades range from 0.7A/phase ~ 7A/phase Single power input, voltage range from AC110V~220V The upmost pulse response frequence amounts to 200Kpps Phase memorize (Notes: Once the pulse stops for 5s or more, the Driver will memorize the current phases automatically so that it can be resume after restart or MF signal changes from valid to invalid. )
Typical application Carve machine Precise large size & middle size lathe Packing machine Computer control embroidering machine Constant speed application Description ,can match three phase hybrid step motors whose rated current under 7A,flange size range from 86~110mm.
Please contact with us for more detailed technical information.
We can design according to clients' requirements.



Company Information
FAQ Q1. Are you factory?
Yes, we are factory and we produce stepper motor/driver, Servo motor/driver and spindle servo motor for more than 14 years in China. MIGE is our registered brand.
Q2. What are your products can be use to?
A: Our products can be use in CNC routers ,CNC milling machine ,engraving machine, packaging machine, filling machine, cutting machine, printing machine, laser machine, carving machine, labeling machine, textile machine and so on.

Q3: What kind of shipping methods do you use?
A:1)For samples or small batch , air shipping is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.
2)For mass production or big batch, ocean shippinga shipment is recommended .

Q4: What is the lead time of my products?
A: Lead time : For standard samples , 2-5 days will be OK .
For mass production , the lead time depend on the quantities you need .

Q5: What is your warranty time?
A:12 months. And we provide life-long technical service and after-sale service.

---
