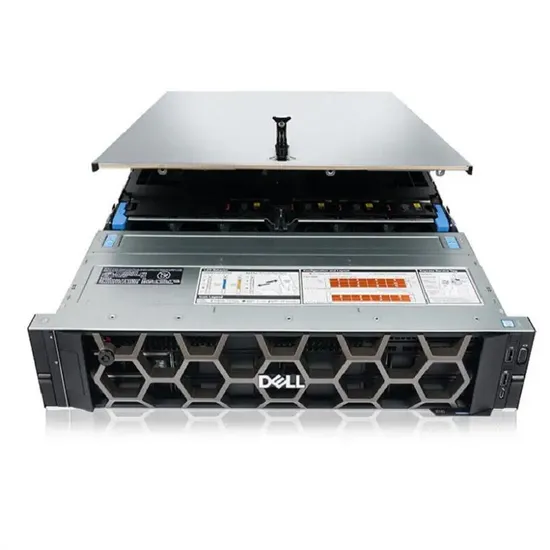

| Base | PowerEdge R550 Server |
| FRONT STORAGE | Chassis with up to 8x3.5" Drives |
| BACKPLANE | SAS/SATA Backplane |
| Trusted Platform Module | Trusted Platform Module 2.0 V3 |
| Chassis Configuration | 3.5" Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU |
| Processor | Intel® Xeon® Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666 |
| Additional Processor | Intel® Xeon® Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666 |
| Processor Thermal Configuration | Standard Heatsink for 2 CPU configuration |
| Memory Configuration Type | Performance Optimized |
| Memory DIMM Type and Speed | 3200MT/s RDIMMs |
| Memory Capacity | 16GB RDIMM, 3200MT/s, Dual Rank |
| RAID Configuration | C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) |
| RAID/Internal Storage Controllers | Front PERC H755 Front Load |
| Hard Drives | 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD |
| Hard Drives | 12TB 7.2K RPM SATA 6Gbps 512e 3.5in Hot-plug Hard Drive |
| BIOS and Advanced System Configuration Settings | Power Saving BIOS Setting |
| Advanced System Configurations | UEFI BIOS Boot Mode with GPT Partition |
| Fans | Standard Fan Cold Swap 2U,V2 x5 |
| Embedded Systems Management | iDRAC9, Express 15G |
| Power Supply | Dual, Hot-plug, Power Supply Fault Tolerant Redundant (1+1), 800W, Mixed Mode,NAF |
| Power Cords | Rack Power Cord 2M (C13/C14 10A) |
| PCIe Riser | 2 CPU, 3x16 LP+ 1x8(x4 link) LP |
| Motherboard | PowerEdge R550 Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM, V4 |
| OCP 3.0 Network Adapters | No OCP 3.0 mezzanine NIC card, Blank Filler Only |
| Additional Network Cards | Broadcom 57416 Dual Port 10GbE BASE-T Adapter, PCIe Low Profile |
| Quick Sync | No Quick Sync |
| Password | iDRAC,Legacy Password |
| Group Manager | iDRAC Group Manager, Disabled |
| Bezel | PowerEdge 2U Standard Bezel |
| Boot Optimized Storage Cards | BOSS-S2 controller card + with 2 M.2 240GB (RAID 1), Hot-Plug |
| Operating System | No Operating System |
| OS Media Kits | No Media Required |
| Rack Rails | ReadyRails Sliding Rails Without Cable Management Arm |
| Internal Optical Drive | No Internal Optical Drive |
| System Documentation | No Systems Documentation, No OpenManage DVD Kit |
| SHIPPING | PowerEdge R540 Shipping EMEA1 (English/French/German/Spanish/Russian/Hebrew) |
| Shipping Material | PowerEdge R550 Shipping Material |
| Regulatory | PowerEdge 2U CCC Marking, No BIS or CE Marking |
| Services: Hardware Support | Parts Only Warranty 12Months, 12 Month(s) |
| Dell Services: Deployment Services | No Installation Service Selected (Contact Sales rep for more details) |
