Clay Crushing Jaw Crusher Small Mining Machines Stone Crushing PE600 900 Professional Jaw Stone Crusher

Product Description

Product Description

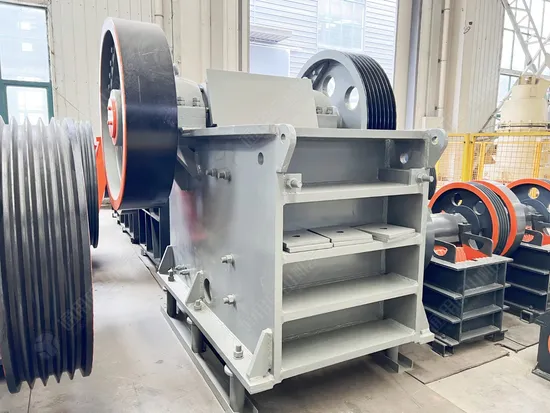

Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPA. The jaw crusher is widely used in mining,metallurgical industry,building material, highway, railway, and chemical industry. Large and mediumsized jaw crusher is one of our company's leading products and it has been at the leading level in China,especially in thedesign and production of large jaw crusher.
Working principles
The pulleys are driven by motor and the movable jaw moves up and down by eccentric shaft. When the movable jaw going down, the angle between the fixed jaw and movable jaw becomes small so that the materials can be crushed; when the moving jaw rising up, the angle between the fixed jaw and moving jaw becomes large, the moving jaw leaves the fixed jaw with the function of draw bar and spring so as to discharge the crushed materials from the outlet of the crushing cavity.The jaw crusher structure is mainly composed of frame,jaw plate,toggle plate,eccentric shaft,flywheel and tension rod.The jaw plate consists of the fixed jaw and the movable jaw.
Structure of jaw crusher
Jaw crusher contains frame, eccentric shaft, big belt pulley, flywheel, side guard plate, toggle plate, back seat of toggle plate,clearance adjustable screw, reset spring, fixed jaw and movable jaw, etc. and among them the toggle plate also has insurance effect.
Features
1 Deep-cavity crushing, high efficiency and energy saving 2 High bearing capacity and stability 3 Centralized lubrication system and easy maintenance 4 Simple structure and easy maintenance 5 Multi-using of one machine, environmental friendly
Gravel Production Line
The material is first transported to the jaw crusher evenly and continuously through the vibrating feeder. After being crushed by the jaw crusher, it is conveyed to the impact crusher for secondary crushing. After the secondary crushing, the material is conveyed to the vibrating screen.During normal operation, the vibration of exciter will drive the screen mesh fixed on the screen box vibrate, and then materials will be screened. The big and small materials fall from the upper side and lower side of the screen to get them separated.
If you would like information on the entire line , please click here to contact us.
Commonly Used Materials
Our stone jaw crusher can greatly reduce the operating costs. And it is of reliability and flexibility. Jaw crusher is widely used for crushing various materials like stone, granite, trap rock, coke, coal,manganese ore, iron ore, emery, fused aluminum, oxide,fused calcium carbide, lime stone, quartz, alloys. This series of jaw crusher makes a feature of great crushing ratio, uniform size of fineness , easy maintenance and less operating cost. And the jaw crusher is widely used in mining, metallurgical industry,building material, highway and chemical industry.
Main technical parameters

Model	Max feeding size(mm)	Output adjustment range(mm)	Priduction capacity(t/h)	Power(kw)	Overall dimension(mm)
PE200 × 350	180	18-70	3-10	11	1000x 870x 990
PE250 x 400	200	20-50	5-20	15	1430 x 1310 x 1340
PE400 x 600	350	40-100	15-60	30-37	1700 x 1732 x 1653
PE500 x 750	425	50-100	40-110	45-55	2035 x 1921 x 2000
PE600 x 900	480	65-160	90-180	55-75	2290 x 2206 x 2370
PE750 x 1060	630	80-140	110-320	90-110	12655×2302× 3110
PE900 x 1200	750	95-165	220-450	110-132	3800 x 3166 x 3045
PE1200 x 1500	1020	150-300	400-800	160-220	16380×5310×3710
PEX150x250	125	10-40	1-3	5.5	896×745×935
PEX150x750	125	18-48	5-6	15	1200×1500×1200
PEX250x750	210	25-60	15-30	22-30	1667×1545×1020
PEX250x1000	210	25-60	15-50	30-37	1550×1964×1380
PEX250x1200	210	25-60	20-60	37-45	2192×1900×1950
PEX300x1300	250	20-90	16-105	55	2720×1950×1600

Our Customers Site
We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
This is our stone production line in Indonesia!
The customer's requirements:
raw material: marble, capacity: 400 tons/hour, finished products: 0-5mm, 5-16mm, 16-31mm.
Equipment configuration: 2xZSW490*130 vibrating feeder, 2 PE750x1060 jaw crusher, 2xPYD2200 cone crusher, 2x3YZS2460 vibrating screen, a VSI1140 sand making machine.
Company Profile
Since in 2004, Zhengzhou General Mining Machinery Co.,Ltd has been the professional manufacturer of Grinding Mill, crushers and sand making machines,etc. TYM is committed to helping more users around the world to obtain higher profits and faster return on value. Our main products are European Version Grinding Mill, Raymond Grinding Mill, High Pressure Suspension Roller Mill, Micro-powder Grinding Mill, Jaw Crushers, Impact Crushers, Hammer Crusher, Compound Crushers, Ball Mill, nine series of products with more than 30 kinds of specifications. Our factory covers an area of 120,000 square meters and manufactures TYM brand Mining Machinery,has passed international ISO:9001, GOST and CE certification.
Packaging & Shipping
The package of all equipment is accord with the standard protective measures.The packing is suitable for short and long distance transportation. The moisture proof, quake proof, protected against dampness, and rustproof protection measures were taken to ensure the machine shipping to customers safely. All the machine will be packaged by plastic film.

Certifications

Our Services
Warranty
100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
Pre-sale services:
(1) Device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program.
Sale services:
We will send technicians to you for guiding the equipment installation and commissioning and staff training.
Sales tracking :
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.
(2) On-site training of operators.
(3) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

---
