Basic Info.
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Transport Package
Wooden Box
Specification
1220mm*1250mm*2270mm
Production Capacity
50sets/Month
Product Description
Product Description

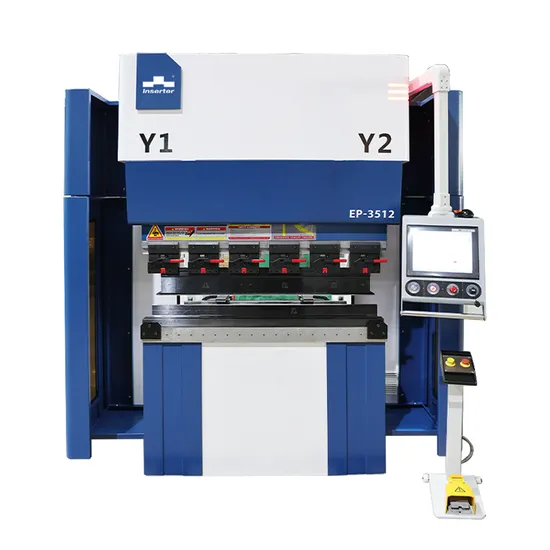

The full servo bending machine adopts a high-end CNC system, the main board adopts industrial-grade chips, 15-inch touch display, high-speed and high-precision control, energy-saving and environmentally friendly, especially power-saving, no need to use and replace hydraulic oil, spindle power box, sealing protection design , super long life, the best choice for buyers.
TECHNICAL INDICATORS 1.Repeat positioning accuracy reaches ±5μm.
2.Intelligent tool load monitoring.
3.Automatic bending pressure calculation.
4.Direct calculation of back gauge position.
5.Intelligent angle compensation function
(requires only one trial bend for automatic correction of angle deviation.)
6.Continuous arc bending function.
7.Die parameter library.
8.Password protection function.
Product Features
Size | EP-3512 | EP-6025 |
Bending pressure | 35 TON | 60 TON |
Bending length | 1200 MM | 2500 MM |
Throat depth | 400 MM | 410 MM |
Opening height | 430 MM | 470 MM |
Y axis travel | 180 MM/S | 220 MM/S |
X-axis travel | 400 MM/S | 500 MM/S |
R axis travel | 140 MM/S | 200 MM/S |
Z1/Z2 stroke | 700 MM/S | 400 MM/S |
Axis | 6 | 6 |
Weight | 2580 KG | 5300 KG |
FAQ 1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%),Western Europe(10.00%),North America(10.00%),Northern Europe(5.00%),Central America(5.00%),South America(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),Mid East(2.00%). There are total about 20-50 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Fastener Insertion Machine,Self clinching Press,Riveting Machine,Spot Welder,Clinching Fasteners 4. why should you buy from us not from other suppliers? RSM Machinery CO.,ltd includes fastener insertion machine, self clinching machine, hydraulic steel/ironworker, turret grinding machine ,self clinching system , production line as well as other different kinds of machine tooling and accessories. 5. what services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,L/C,Cash; Language Spoken:English,Chinese
>>
