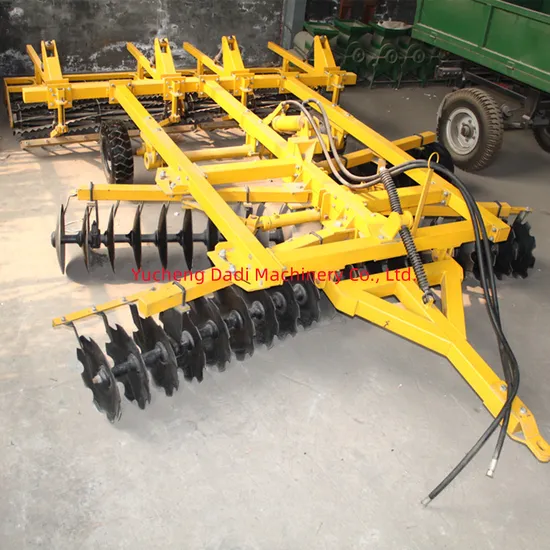

Once-Over Tillage Machine (1LZ series) Disc Harrow

Product Description

Thank you for visiting for our web.Hope the information will be helpful for you. Once-over tillage machine
The Once-over tillage machine can complete the pulverizer , soil transporting, soil mixing, leveling before sowing, repression, and can be directly prepared flat seedbed, they can improve the efficacy, reduce the cost.After stubble ploughing, the organic soil quality contents rise, soil structure improves, the yield improves.
The machine is suitable for growing out robust crop, and the same time you can Obtain greater benefits, All of these can be achieved depends on 1LZ series joint tillage machine, Working width from 3.6m to 7.2m, it can be content with different customer's requirement.
Technical parameters:

Type		1LZ-3.6	1LZ-4.2		1LZ-5.4	1LZ-7.2
Overall dimensions(mm)	L	6600	6600	6600		7000
	W	3800	4400	5600		7500
	H	1000	1000	1000		1000
Max.Working width (m)		3.6	4.2		5.4	7.2
Working depth(mm)		80-140	80-140		80-140	80-140
No.Of disc(PC)		42	50		64	84
Disc of Type (mm)		460×3	460×3		460×3	460×3
Disc spacing(mm)		170	170		170	170
Weight(KG)		2350	2680		3320	4360
Productivity(Ha/h)		2.28	2.66		3.33	4.44
Linkage		Trailed Trailed
Trans.Clearance(mm)		≥160 ≥160
Matched power(Hp)		≥65	≥80		≥100	≥120

---
