Renovl SAE J1527/ISO 7840 Uscg Marine Suction & Discharge Fuel Hose

Product Description

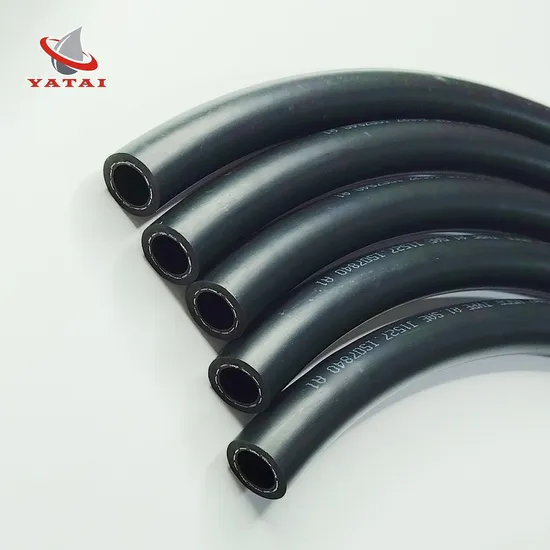

RENOVL SAE J1527/ISO 7840 USCG Marine Suction & Discharge Fuel Hose
Product Description
SAEJ1527 / IS07840 USCG Marine Fuel Feed Vent Hose
Tube: NBR
Reinforcement: High tensile textile cord with helix steel wire plus conductive copper wire
Cover: flame retardant oil and weather resistant CR
Application: For connection between a ship's fuel filer port and a ship's fuel tank, the fireproof outer layer meets the UscG's class A for 2.5 minutes
Temperature Range: -30°C ~+100°CProduct Parameters

SAEJ1527 / IS07840 USCG Marine Fuel Feed Vent Hose
SIZE I.D			O.D	W.P		B.P		B.R	L	W.T
dash	inch	mm	mm	bar	psi	bar	psi	mm	m	kg/m
-12	3/4"	19.1	30.8	10	150	30	450	114	60	0.76
-16	1"	25.4	36.8	10	150	30	450	152	60	0.94
-20	1.1/4"	31.8	44.8	10	150	30	450	191	60	1.25
-24	1.1/2"	38.1	51.4	10	150	30	450	229	60	1.56
-29	1.3/4"	45.0	58.4	10	150	30	450	270	60	1.80
-32	2"	50.8	64.4	10	150	30	450	305	60	2.01
-40	2.1/2"	64	78.4	10	150	30	450	384	60	2.61
-48	3"	76	90.8	10	150	30	450	456	60	3.16
-56	3.1/2"	89	106.2	10	150	30	450	534	60	4.56
-64	4"	102	119.2	10	150	30	450	612	60	5.16
-82	5"	127	146.2	10	150	30	450	762	60	6.92
-96	6"	152	172	10	150	30	450	912	60	8.36
-128	8"	203	226.4	10	150	30	450	1218	30	12.71
-164	10"	254	280.8	10	150	30	450	1524	10	20.79
-192	12"	304	334.2	10	150	30	450	1824	10	29.14

Detailed Photos
Company Profile
FAQ
Q1. How can we guarantee quality?
A1.Always a pre-production sample before mass production.
Always final Inspection before shipment.
Q2. What is your sample policy?
A2.We can supply the sample if we have ready parts in stock, but the customers must pay for the sample and courier costs.
Q3. Can you produce according to the samples?
A3: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q4. Why should you buy from us not from other suppliers?
A4.For many years, we have been committed to the research and development of rubber and plastic products. Our R&D team has over 20 years of R&D experience. All of our products are produced directly from the factory. We accept OEM and ODM!
Q5.What are your main products?
A5.Our main products are all kinds of rubber hoses including Hydraulic hoses, air hoses, welding hoses, sandblast hoses, suction and discharge rubber hoses, and PVC hoses, including PVC Lay flat Hose,
Q6. Could we pay a visit to your factory?
A6.Yes, you are always welcome to visit our factory.

---
