Rubber Floor Mat Production/Rubber Tile Making/Interlocking Rubber Tile/Rubber Floor Mat/Rubber Ground Mat Making

Product Description

rubber floor mat production/rubber tile making/Interlocking Rubber Tile/Rubber Floor Mat/rubber ground mat making

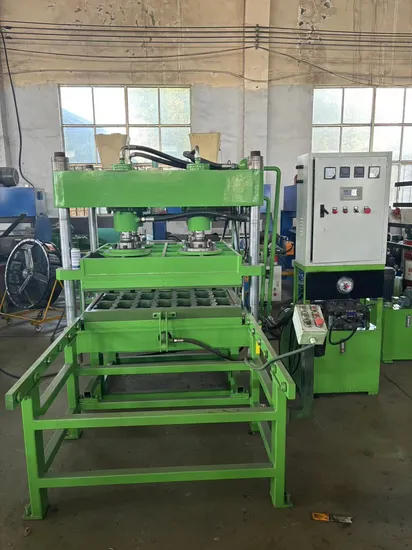

The complete making line including 2sets mixers, rubber tile vulcanizing machine and molds. It is mainly used to produce various size of rubber tiles from 1-5mm rubber granules.
1.feature:
1. we usually design as clients' products and details request. our machine is 4 working layers, 1 hour can made 8 pcs rubber floor. We can also according your needs. and decide the working layers.
2.the machine is matched with manual push-out device .
3. we also can provide the different size of the molds, from 20mm to 75mm thickness.
4. rubber mixer can also provided, if needed.
5. The press with 12 pcs molds and rubber mixer is only 8m3 of the flooring area, it can be LCL for loading, So the sea freight is very cheap.
6. We also can according to the customers' requirement, and design the non-standard type of rubber tile vulcanizing machine.

2. Advantage:
1. CE, ISO, SGS, excellent seal and long life.
2. High production efficiency, low mold-locking speed, protect mold.
3. Less energy consumption, low noise, without oil spilling or off pressure.
4. Reliable structure, easy to be operated.
Technical parameter of four column structure:

Parameter/model	XLB 1200x1200x1
Pressure (T)	100/120/160
Hot plate size (mm)	1200*1200*60
Plates Distance (mm)	150-300
Working layer	1
Hot plate quantity	2
Piston stroke (mm)	150-300
Motor power (kw)	5.5/7.5
Weight(kg)	4000

---
