Strong Adaptability Hydraulic Spreader Machine & Diesel Engine Concrete Pump

Product Description

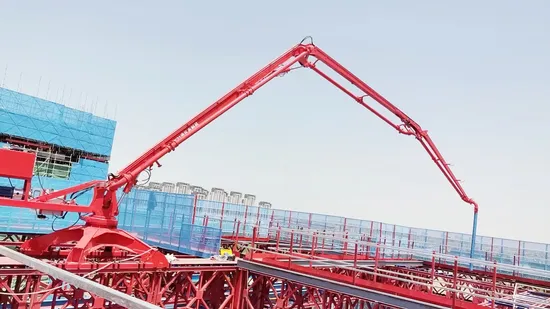

Strong Adaptability Hydraulic Spreader Machine & Diesel Engine Concrete Pump
Company Profile

Mittelrhein international company is located in Shandong Logistics Center, featuring high-efficiency domestic logistics in China and low-cost logistics expenses.
Shandong is a major heavy industry hub in China. With 20 years of procurement history, our team provides efficient and high-quality services. We have long-term partnerships with hundreds of different factories, all of which have passed our product quality selection.
Our international procurement team is dedicated to providing high-quality products and reliable after-sales services, solving the after-sales issues of overseas buyers. Our international logistics have also been carefully selected.
The long-term partner logistics companies possess highly flexible control capabilities, whether it is rail transportation, sea transportation, or combined transportation. The routes and emergency transfer operations are very mature and experienced, which can better reduce unnecessary effort, time, and shipping cost losses for our customers. Product Description
1. while simultaneously performing boom elevation, extension, and folding actions.
2. Not affected by the size and shape of the construction surface, it can adapt to various construction floors and complex construction site requirements
3. Compact structure, can be hoisted and relocated, and does not require fixation during use. It can be easily lifted to the appropriate pouring location using lifting equipment as needed, and can be placed on floors, platforms, or simple platforms, providing great flexibility and mobility
4. Simple operation, with a scientific safety protection device and economical efficiency. This type of distribution machine is mainly suitable for high-rise and super high-rise buildings with elevator shafts.
Detailed Photos
The material is thrown into the air clockwise, and the two mixing shafts cross-mix the input material. The paddles can disperse the material, achieving a good mixing effect. Generally, each batch of material can be evenly mixed in about 150 seconds.other products such as Dry mortar mixer
Putty paste mixer
Putty powder mixer
Real stone paint mixer
Pulse dust collector
Screw conveyor
Bucket elevator
High-speed disperser
Powder particle packaging machine
Real stone paint packaging machine
Sand dryer
Our Advantages

Product Parameters

HS13 Hydraulic Spreade
Permance	Horizontal reach(m)		13m
	Rotation(°)		360°
	Elevation angle(°)		0~90°
	Slewing brake		Normally closed
	Working environment temperature		"-5ºC~40ºC
	Weight(T)	Weithout counterweight	2.7
		Counterweight	4.5
	Outrigger Span		4000×4000
Control System	Power		380V/50HZ
	Output(kW)		4
	Ptotection grade		IP54
	Insulation clas		F
	System Pressure(MPa)		20
	Control mode		Cable/Radio remote
Boom	Duct cleaning method		Wash/Dry cleaning
	Boom open way		Three R
	Inner diameter of delivery pipe(mm)		Φ125
	End rubber hose(m)		3
	Length(mm)		5330/4330/3330
	Corner(°)		90/180/180

Packaging & Shipping

After Sales Service

1.24 hours support.
2.Arrange the install and test without delay.
3.One year guarantee for probems caused by quality.
4.Supply spare parts in time.
5.Engineers can conduct on-site surveys as requested by the client.
