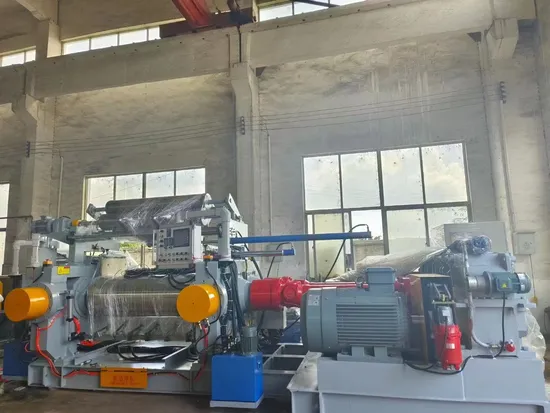

Hydraulic Rubber Roller Mill

Product Description

Product Description Hydraulic Rubber Roll Mill is with hydraulic roll gap adjustment, the variable roll gaps for rubber mixing, rubber thinning through and rubber sheeting can be easily set on the touch screen, digital display, more precise roll gap control. Compared with the traditional mechanical worm gear type roll gap control device which is of high friction during adjustment, and the gear gaps could gradually becomes larger after a long time of use, so the roll gap control becomes less and less accurate gradually.
In contrast,because hydraulic control device adjust the roll gap by drive cylinder moving back and forth horizontally, it is almost frictionless,so it is very durable to keep its working stability,ensuring accurate gap even after many years use.
Besides, the hydraulic roll gap can be adjusted during rubber mixing.And the hydraulic roll gap is able to expand or shrink according to different types of rubber with regarding their different hardness,viscosity and elasticity,etc, and it will be adjusted to the set roll gap automatically . Product Parameters

Model	XK-H-360	XK-H-400	XK-H-450	XK-H-550		XK-H-610		XK-H-660
Diameter of rolls	360	400	450	550		610		660
Working length of roll	900	1000	1200	1500		1830		2130
Working speed of front roll	17.4	19.3	23.1	28.6		30.1		32.45
Fraction ratio of rolls	1:1.27	1:1.27	1:1.27	1:1.29		1:1.18		1:1.09
Max.gap(mm)	10	10	10	15		15		15
Nip regulating mode	Manual/hydraulic	Manual/hydraulic	Manual/hydraulic	hydraulic			hydraulic	hydraulic
Batch capacity (Kg)	15-20	25-35	30-50	50-60		75~110		120-160
Motor power (KW)	30	45	55	90/110		160		180
Reducer
Overall dimension (LxWxH:cm)	3890x170 X140	449x170 X175	557x190 X175	629x233 X178		720x 240x190		750x 363x208
Weight (kg)	7600	9000	11500	20000		35000		45000

Exhibition
Packaging & Shipping The rubber roller mill machine is packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.
Installation Instructions We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.

---
