High Quality M1463 Universal Metal Cylindrical Grinding Machine Made in China

Product Description

Product Description

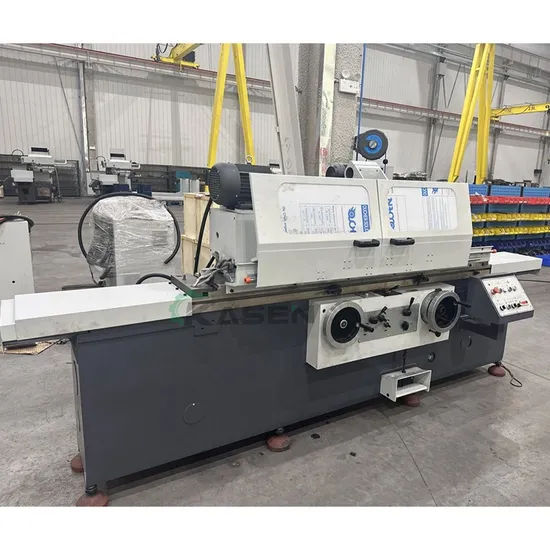

Horizontal cylindrical grinder machine M1450 universal metal cylindrical grinding machine
Characteristics of machine tools:
1. When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale.
2. Oil film between bearing and spindle keeps vibrations ata minimum level, hence achieving outstanding results and top accuracy.
3. Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation.
4. Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations.
5. Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments.
6. Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing.
7. Longitudinal table feed can be set to automatic mode -hydraulically driven or manual mode - by handwheel.
8. Stepless feed adjustments with the option of aprogrammable hold time at the end of each table movement.
9. Hydraulic or manual repositioning of grinding spindle stock.
10.Guideways in x- and y-axis are precisely constructed and hand-polished.
11.Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide.

Model		MW1420	M1432B	M1450	M1463
Distance between centers		500, 750mm	1000, 1500, 2000	1500,2000,3000	3000,4000,5000
Center height		135mm	180	270	335
Dia. Ground (O.D)		5~200mm	8~320	25~500	30~630
Dia. Ground (I.D)		25~100mm	30~100	30~200	30~200
Max. Length ground (O.D)		500, 750mm	1000, 1500, 2000	1500,2000, 3000	3000,4000, 5000
Max. Length ground (I.D)		100mm	125	320	320
Max. weight of workpiece		100kg	150	1000	3000
Swiveling angle		+90 degree	+90 degree	+90 degree	+90 degree
Center taper (MT)		4MT	MT4	MT6	MT6
Spindle speed		50HZ: 25 - 380r/min	50HZ: 25-220r/min	50HZ: 20 - 224r/min	50HZ: 8 - 150r/min
Wheel Spindle speed		1670rpm	1670	1330/665	740
Swiveling angle		+30 degree	+30 degree	+30 degree	+30 degree
Wheel Size Max. dimension of wheel (OD x W x ID)		400 x 50 x203mm	400 x 50 x203mm	500x75x305mm	900x75x305mm
Max. Swiveling angle	Clockwise	3 degree	3 degree	3 degree	2 degree
	Anticlockwise	7degree(1000)6degree	7degree(1000) 6degree(1500)	6degree(1500) 5degree(2000)	3degree(3000) 2degree(4000)
Roundness		0.003mm	0.003	0.005	0.005
Cylindricity		0.005mm	0.005	0.008	0.008
Roughness		0.2Ra	0.2	0.32	0.32

Service support
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
