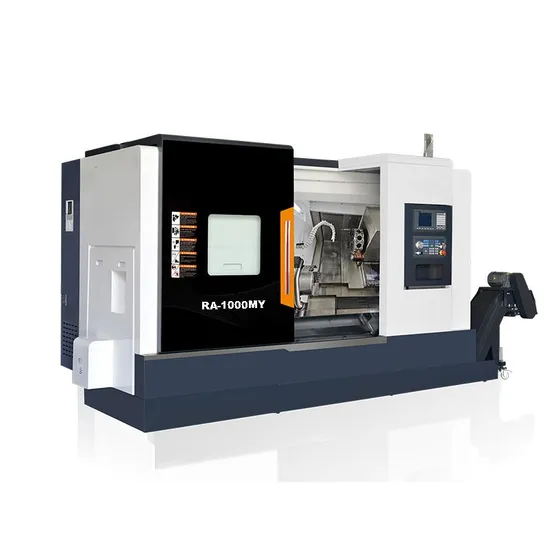

High Speed Horizontal CNC Slant Bed Lathe Metal Milling Turning Machine Center

Product Description

Introducing the Advanced CNC Slant Bed Milling Machine-a marvel of modern engineering that promises to redefine your machining processes with precision and efficiency.
Product Description

Processing Capability			Unit	RA-1000M
Processing Capability	Maximum bed swivel diameter		mm	Φ630
	Maximum machining diameter		mm	Φ580
	Maximum machining diameter on the tool holder		mm	Φ370
	Maximum processing length		mm	950
	Maximum bar through-hole diameter		mm	Φ72
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-8
	Spindle through-hole diameter		mm	Φ87
	Maximum spindle speed		rpm	2500
	Hydraulic cylinders/chucks		Inch	10''
Axis feed	Axis travel	X-Axis	mm	370
		Z-Axis	mm	1120
	Travel Speed	X-Axis	mm	15
		Z-Axis	mm	20
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	BMT55-12T
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	1250
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ100
	Tailstock sleeve travel		mm	120

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Immerse yourself in a superior production environment that epitomizes perfection. Discover unparalleled processing conditions designed to maximize performance and ensure exceptional results, setting the gold standard in industrial excellence.
Our cutting-edge imported equipment lineup, featuring horizontal and vertical machining centers, high-precision CNC boring machines with rotating tables, and advanced gantry guideway grinding machines, ensures extraordinary workpiece precision. This remarkable accuracy not only enhances assembly precision but also extends the operational lifespan of our equipment.
• Revolutionary State-of-the-Art Detection Techniques
Our commitment to precision knows no bounds. Positioning accuracy is rigorously tested and precisely calibrated using the latest in laser technology, adhering to stringent German VDI3411 inspection standards, with five comprehensive tests per standard to ensure unparalleled accuracy.
Every machine tool is subject to thorough processing tests before shipping, ensuring that it not only meets but surpasses the actual processing accuracy benchmarks, providing you with exceptional reliability and peace of mind.
Product sample
• Experience the pinnacle of efficiency with our Automated 4-Axis CNC Drilling Milling Center. This engineering marvel seamlessly integrates advanced milling, drilling, and tapping functionalities, revolutionizing productivity and precision to deliver peak performance in every operation.
• Master the art of precision with our expertly engineered CNC machine, capable of effortlessly handling a wide range of materials, from aluminum and steel to copper and non-metal profiles. Achieve unrivaled craftsmanship and intricate detail, turning every project into a work of art.
• Elevate your production capacity across diverse industries-from 3C electronics and rail transportation to aerospace and linear module guide rails-with our versatile CNC machining solutions. Our advanced technology ensures extraordinary versatility and exceptional performance, streamlining your operations with unrivaled efficiency.
Packaging & Shipping
•Highly Protective: Our carefully crafted packaging solutions ensure the Vertical CNC Drilling Machine Center is safeguarded during transit. With robust protection, we guarantee against potential damage, delivering peace of mind and maintaining product integrity throughout its journey.
•Structural Stability: Our thoughtfully designed packaging ensures the machine's structural integrity remains unscathed. Each component is securely protected to ensure the machine arrives in perfect condition, ready for immediate, hassle-free use.
•Environmentally Friendly and Recyclable: Upholding our dedication to sustainability, we select packaging materials that are both durable and eco-friendly. Our solutions are fully recyclable, reducing environmental impact while ensuring responsible stewardship of our planet.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
