Industrial Liquid Solid Separation Equipment

Product Description

Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Introducing the DQB series separator, specially crafted for the brewery industry. This separator is a crucial component in beer production, providing efficient mechanical clarification separation. It effectively removes extremely fine particles from the liquid phase, enhancing the beer's transparency and clarity while maintaining its essential active ingredients.
Features:
Efficient separation of fine particles
Preservation of active ingredients
Enhanced flavor and aroma
Cost-effective and safe

Benefits:
Clear and transparent beer
Preserved nutritional value and freshness
Improved flavor and aroma
High purity and quality

Typical Applications:
Beer fermentation mash separation
Whole cell collection of thallus
Separation of cell wall breaking fragments

Product Description Product Description:
The separator from Changzhou Qianmai Mechanical Equipment Technology Co., Ltd efficiently separates liquid/solid two-phase materials with precision:
Non-emulsified liquid particle size separation of up to ~ 2μm
Solid particle size separation reaching ~ 0.5μm (density above 1.08g/ml)
Effectively separates beer yeast particles sized between 5 ~ 8μm (density around 1.02g/ml)

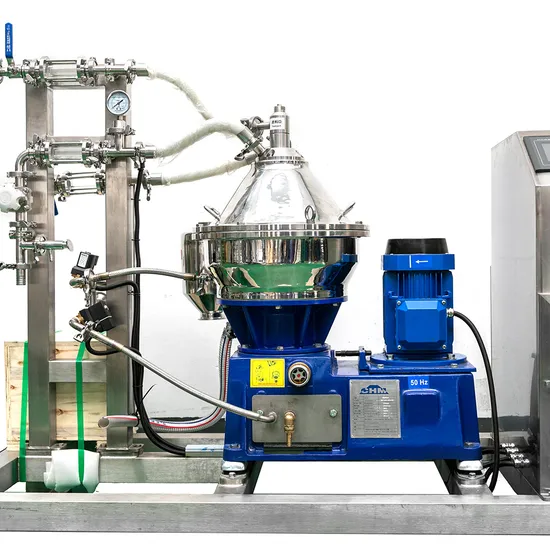

Detailed Photos Product: DQBN260 Separator Company Profile FAQ
Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd
Welcome to Changzhou Qianmai Mechanical Equipment Technology Co., Ltd Are you in need of reliable mechanical equipment manufacturing services? Look no further than Changzhou Qianmai! With over 30 years of experience, our expert team is dedicated to meeting all your needs.
Our Services:
Customized product design and manufacturing
Comprehensive one-stop service from research to upgrade
24/7 online after-sales support
Discover our high-quality equipment tailored to your specific requirements. We offer flexible payment terms for both new and regular customers, ensuring a seamless purchasing experience. Choose from various delivery options based on your purchase order, with fast delivery times and expedited options available for urgent needs.
Rest assured with our 1-year warranty and additional instructions for special circumstances. Contact us today for more information or to schedule a visit to our factory. We are dedicated to providing you with top-notch mechanical equipment solutions!

Application	Model	Treatment Capacity	Motor Power	Inlet Pressure	Outlet Pressure	Weight	Overall Dimensions
		(L/H)	(KW)	(MPa)	(MPa)	(KG)	(mm)
Animal Fat/Plant Oil	DQRE260	700-1500	3	0.05-0.1	≤0.3	280	620*500*1100
	DQBE260	1000-2000	3	0.05-0.1	≤0.4	280	620*510*1200
	DFBE350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFHE450	3000-4000	11	0.05-0.1	≤0.4	1450	1850*1550*1800
	DFHE610	6000-10000	22	0.05-0.1	≤0.4	2180	1980*1610*1950
Food/Beverage/Dairy	DQRP260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
	DQHN260	700-1500	3	0.05-0.1	≤0.3	260	620*510*1400
	DQBP350	1200-2000	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DQBN380	2000-3500	7.5	0.05-0.1	≤0.4	1250	1600*1200*1500
	DQBN410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
	DQHP510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFHP610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950
Biological Fermentation	DFBS260	200-500	2.2	0.05-0.1	≤0.3	260	620*510*1400
	DFBS260	700-1500	3	0.05-0.1	≤0.3	280	620*510*1400
	DFBS350	1200-2500	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFBS410	2000-4000	11	0.05-0.1	≤0.4	1250	1600*1200*1500
	DFBS510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFBS610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950
Industrial Waste Liquid	DFBY200	200-1000	0.37	0.05-0.1	≤0.3	80	500*600*1200
	DFBY260	700-1500	3	0.05-0.1	≤0.3	260	620*510*1400
	DFBY260	1000-2000	3	0.05-0.1	≤0.4	280	620*510*1200
	DFBY350	2000-3000	5.5	0.05-0.1	≤0.4	450	620*510*1200
	DFBY410	3000-4000	11	0.05-0.1	≤0.4	1600	1850*1550*1800
Chemical Liquid Coal Tar Marine/Mineral Oil	DFBY510	3000-5000	15	0.05-0.1	≤0.4	1670	1850*1550*1800
	DFHY610	6000-10000	22	0.05-0.1	≤0.4	2100	1980*1610*1950

Customizable ISO9001 Certified Liquid Solid Separation Equipment by Changzhou Qianmai Mechanical Equipment Technology Co., Ltd.
Ideal for industrial applications
Suitable for alcohol distillation
Perfect for phosphoric acid separation

---
