Low Price Excellent Strength Jushi 440 4400 Tex Fiberglass Gun Roving for Water Tank Electrical Component

Product Description

Product Description

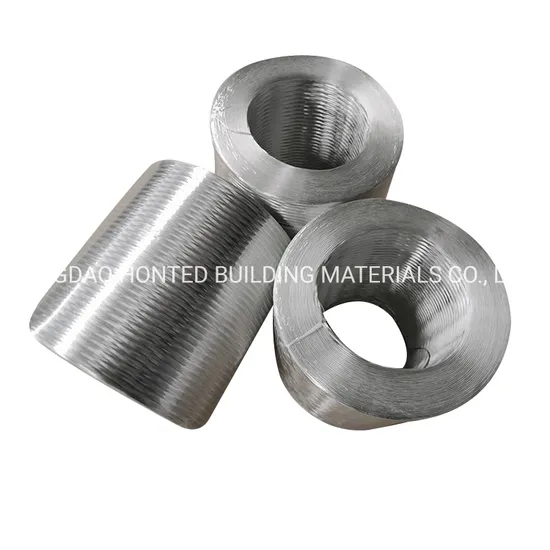

→Assembled Fiberglass Roving:
Which is compatible with unsaturated polyester resin.It delivers properties of low static,excellent dispersion and good wet out in resins.It is mainly used in bathroom,vessels and etc.
It's also called Gun Roving / Spray up rovingwhich is used in the spray-up (chopping) molding process and is the reinforcement of choice for high production open mold manufacturing.Gun Roving (also known as continuous strand roving) is comprised of many small diameter fiberglass filaments that are combined to form a roving fiber bundle that is wound into a doff or a creel. In the spray-up process, the continuous roving strand is fed into a chopper gun that chops the strands into short lengths and deposits the fiber into a resin spray pattern for application on the mold surface. In this way, the wet-out glass laminate is created from the spray gun. The laminate is then rolled to remove entrapped air and the laminate cures. Gun Roving used in the chopping process provides fast production of larger parts like boat hulls, RV parts, and swimming pools and is the most common reinforcement used in open mold manufacturing.
Features·
·Excellent choppability and dispersion
·Fast and complete wet-out ensures easy roll-out and rapid air release
·Great surface quality of composite parts
·Optimal resin consumption
·Excellent mechanical properties of composite parts

Product code	Linear Density Tolerance	Moisture Content	LOI	Tensile Strength	Filament of Diameter	Compatible Resin
ECR13-2400A-823	±6	≤0.10	1.05-1.40	≥0.40	13	UP
ECR13-4800A-823	±6	≤0.10	1.05-1.40	≥0.40	13

→Fiberglass Direct Roving:
Which is coated with a silane-based sizing and compatible with unsaturated resin, vinyl resin, and epoxy resin. It used to produce gratings, various rods and profiles. Main uses include manufacture of FRP pipes of various diameters, high-pressure pipes for petroleum transitions, pressure vessels, storage tanks, and, insulation materials such as utility rods and insulation tube.
It's also called Single-end roving is the primary reinforcement for filament winding and pultrusion applications and is the input fiber used to produce woven roving and knitted fabrics.Single-end continuous rovings are produced by pulling glass fibers directly from the furnace bushing, applying sizing to the cooling fibers, and winding them into a roving package or doff. Because of its excellent dry tensile strength, single-end rovings are ideal for high glass content applications like pultrusion and filament winding. Because the fiber is used as input for woven roving and knitted fabrics, single-end rovings are also widely use in open mold and infusion applications when configured into fabrics.
Features
Excellent process
Low fuzz
Low frequency in machine clean-up
Low sizing migration and good roller compacted performance
Suitable for high speed process
Various resins compatible

Product code	Density (tex)	Moisture content (%)	Size content (%)	Breakage strength (N/tex)	Net weight (kg)
EDR-1200	1200	Less 0.10	0.55±0.15	≥0.40	≥13.0
EDR-2400	2400	Less 0.10	0.55±0.15	≥0.40	≥13.0
EDR-4400	4400	Less 0.10	0.55±0.15	≥0.40	≥13.0
EDR-4800	4800	Less 0.10	0.55±0.15	≥0.40	≥13.0
EDR-9600	9600	Less 0.10	0.55±0.15	≥0.40	≥13.0

Packaging & Shipping
The product can be packed on pallet or in small cardboard boxes.

Package height mm (in)	260(10)	260(10)
Package inside diameter mm(in)	100(4)	100(4)
Package outside diameter mm(in)	270(10.6)	310(12.2)
Package Weight kg(lb)	17(37.4)	23(50.7)

Number of layers	3	4	3	4
Number of doffs per layer	16		12
Number of doffs per pallet	48	64	36	48
Net Weight per pallet kg(lb)	816(1797.3)	1088(2396.5)	828(1825.4)	1104(2433.9)

Pallet Length mm(in)	1120(44)		1270(50)
Pallet Width mm(in)	1120(44)		960(37.8)
Pallet height mm(in)	940(37)	1180(46.5)	940(37)	1180(46.5)

Related Products
Woven Roving Stitched Mat WR Combo Mat
Surface Tissue Fiberglass Cloth Multiaxial Fabric Mat
Storage
Unless otherwise specified, the fiberglass products should be in dry, cool and moisture-proof area. The room temperature and humidity should be always maintained at 15ºC~35ºC and 35%~65%. It is best if the product is used within 12 months after production date. The fiberglass products should remain in their original packaging until just prior to user.
To ensure safety and avoid damage to the product, the pallets not be stacked more than three layers high. When the pallets are stacked in 2 or 3 layers, special care should be taken to correctly and smoothly move the top pallet.
Application
FAQ
1. What is your terms of packing?
Generally, we pack our goods in carton with pallet
2. What is your tems of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. What is your terms of delivery?
EXW, FOB, CFR, CIF,L/C at sight
4. How about your delivery time?
Generally, it will take 21 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
6. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
7. Do you test all your good before delivery? Yes, we have 100% test before delivery
