US$11,700.00-15,800.00
|
1 Set
(MOQ)
|
Basic Info.
Certification
ISO9001, QS, GS, TUV, GB
Type
Low Temperature Storage & Transportation Equipment
Storage Objects
Liquid, Gas
Working Pressure
1.6MPa/2.5MPa/3.5MPa
Inner Vessel Material
SS30408
out Vessel Material
Q345r or SS304308
Installation Type
Vertical
Gas Type
Lo2, Lar, LNG, Ln2
Transport Package
Waterproof Woven Clothes
Production Capacity
100sets/Month
Product Description
Product Description

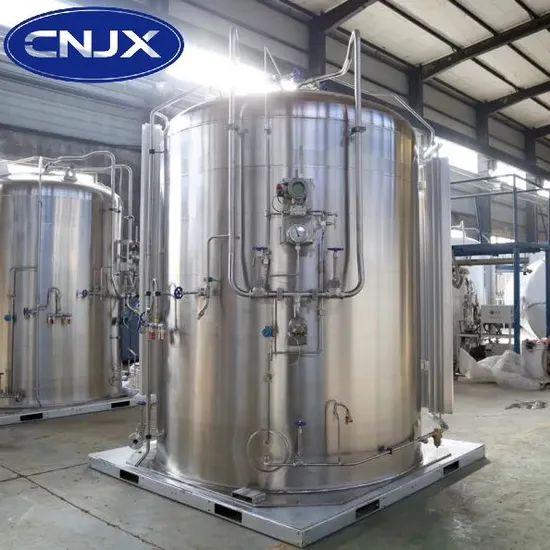

Micro Bulk Cryogenic Storage Tank for LO2/LN2/LNG/LAr
Brief introduction:
Anstar liquid oxygen micro bulk storage tank uses food-grade 304 stainless steel as the inner liner and carbon steel as the outer liner. It is mainly used for filling and storing liquid oxygen. The top liquid filling design has a porous filling structure, which can make the low temperature liquid stable when filling the inner container. It can make part of the gas phase in the container be absorbed and liquefied at low temperature to maintain the relative stability of the gas phase pressure in the container during filling. The newly developed high vacuum multi-layer thermal insulation winding technology has better thermal insulation effect and longer service life.
Main Features:
Compared with the traditional high-pressure steel gas cylinder, this product can greatly reduce the number of replacement, pollution and labor cost. This product can be filled by common transportation tanker/semi-trailer, which is convenient and fast. We can provide users with on-site filling integrated solution and let you enjoy the centralized pipeline gas supply.
Product Parameters
| Technical Parameters of microbulk portable tanks |
Geometric
Volume | Work Pressure
(MPa) | Liquid Gases Weight(kg) | Tare Weight
(kg) | Inner vessel | Outer vessel | Overall Dimensions
(mm) |
| LO2 | LN2 | LAR | LNG | LCO2 | LO2/LN2/LAR/LNG | LCO2 |
| 1m3 | ≤0.80 | 1083 | 769 | 1339 | 404 | / | 926 | / | SS30408 | SS30408/Q345R | 2085*1580*1160 |
| ≤1.60 | / | 926 | / |
| ≤2.30 | / | 926 | / |
| ≤3.45 | / | 1040 | / |
| ≤2.16 | / | / | / | / | 1059 | / | 1045 | 16MnDR | SS30408/Q345R |
| 2m3 | ≤0.80 | 2017 | 1433 | 2495 | 796 | / | 1398 | / | SS30408 | SS30408/Q345R | 2360*2140*1975 |
| ≤1.60 | / | 1398 | / |
| ≤2.30 | / | 1511 | / |
| ≤3.45 | / | 1695 | / |
| ≤2.16 | / | / | / | / | 1915 | / | 2020 | 16MnDR | SS30408/Q345R |
| 3m3 | ≤0.80 | 3120 | 2192 | 3800 | 1047 | / | 1773 | / | SS30408 | SS30408/Q345R | 2560*2338*2143 |
| ≤1.60 | / | 1810 | / |
| ≤2.30 | / | 1993 | / |
| ≤3.45 | / | 2246 | / |
| ≤2.16 | / | / | / | / | 3166 | / | 2454 | 16MnDR | SS30408/Q345R |
| 5m3 | ≤0.80 | 5403 | 3839 | 6645 | 1917 | / | 2655 | / | SS30408 | SS30408/Q345R | 3086*2331*2325 |
| ≤1.60 | / | 2745 | / |
| ≤2.30 | / | 2964 | / |
| ≤3.45 | / | 3405 | / |
| ≤2.16 | / | / | / | / | 5085 | / | 3527 | 16MnDR | SS30408/Q345R |
| 7.5m3 | ≤0.80 | 8105 | 5759 | 10025 | 3035 | / | 3490 | / | SS30408 | SS30408/Q345R | 3170*2715*2450 |
| ≤1.60 | / | 3581 | / |
| ≤2.30 | / | 3904 | / |
| ≤3.45 | / | 4550 | / |
| ≤2.16 | / | / | / | / | 7950 | / | 5065 | 16MnDR | SS30408/Q345R |
| 10m3 | ≤0.80 | 10830 | 7695 | 13395 | 3834 | / | 4431 | / | SS30408 | SS30408/Q345R | 3950*2840*2800 |
| ≤1.60 | / | 4981 | / |
| ≤2.30 | / | 5347 | / |
| ≤3.45 | / | 6450 | / |
| ≤2.16 | / | / | / | / | 10592 | / | 6640 | 16MnDR | SS30408/Q345R |
| Note: The above technical parameters may be changed without prior notice due to modification and development. If there is any change, please refer to the confirmed drawing. |
Detailed Photos
Production Process
Packaging & Shipping
Cryogenic storage tank will be packaged by waterproof plastic woven clothes, and loaded into container or by bulk ship.
Company Profile
FAQ
1. Are you a manufacturer or a trading company?
Answer: We are Chinese professional manufacturer for cryogenic liquid gas storage tanks over 46 years.
2. Is there dicount if with large qty.?
Answer: Sure, we will provide you best competitive price as per your working needs, and big dicount with more qty.
3. What's your main product?
Answers: We have cryogenic storage tanks for liquid O2, liquid Ar2, liquid N2, and Liquid CO2, both vertical type and horizontal type.
Also we have smaller type liquid nitrogen containers with various volumes from 2L to 100L.
4. Can I visit your company?
Answer: Yes, of course, you are welcome to visit our company for face to face meeting.
5. How shall I contact you for price?
Answer: Please send us inquiry.
>>
