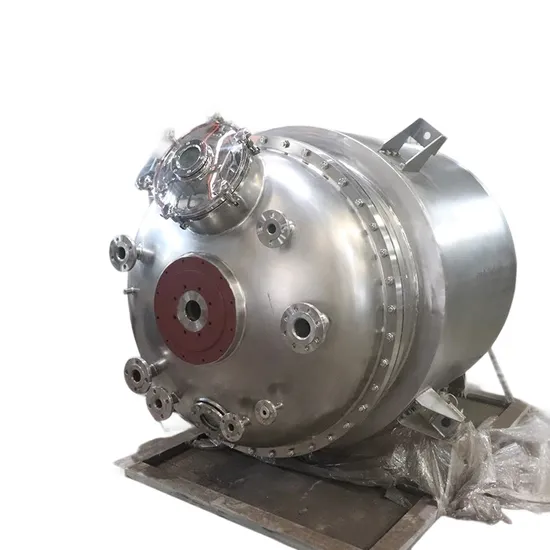

Multi Functional Sealed Stainless Steel Steam High Temperature Electric Heating Kettle

US$1,100.00
1-4 Sets
US$960.00
5-9 Sets
US$690.00
10+ Sets

Basic Info.

Type
Tank Reactor
Material
Stainless Steel
Capacity
>1000L
Structure
Customizable
Pressure
Customizable
Agitator Model
Combined Agitator
Tower Reactor Type
Spray Tower Reactor
Heating
Outside (Inside) Coil Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Customizable
Condition
New
Cooling,
Water or Materials
Stainless Steel
304, 316L, 321
Corrosion-Resistant Metal
Nickel, Titanium, Zirconium, Hastello
Purpose/Use/Usage
Mixing Tank, Crystallizing Kettle, Dissolving Kett
Transport Package
Wooden Box
Specification
50-50000(L)
Trademark
Fast
Origin
Jiangsu
Production Capacity
500/Years

Product Description

specification(L) Actual capacity(L) Inner barrel size(mm) Dimensions(mm) Reducer model Motor power Stirring speed(n/min)
50 61 400 600 m3 0.6 60-80
100 120 500 700 m3 0.6 60-80
200 247 600 800 m4 1.6 60-80
300 355 700 900 m4 1.5 60-80
500 589 900 1100 m6 2.2 60-80
1000 1215 1200 1400 m8 4 60-80
2000 2244 1400 1600 m8 5.5 60-80

The above only shows the parameter information of some specifications of the product, if you have other needs, please contact us to customize, thank you!
Product Category:
Pharmaceutical equipment, chemical equipment, food equipment (dairy beverages, condiments, wines), environmental protection equipment.
Product Standards:
Non-standard production of monomers, complete sets, system units and pressure vessels.
Design, production and acceptance criteria:
HG/T20569-1994,HG/T21571.2-2015TSG21-2016,GB150-1998.
Product Selection:
Titanium steel, 304/316L stainless steel, Hastelloy steel, duplex steel, composite plate, etc.
Applicable process:
Stirring, dissolving, neutralization, emulsification, homogenization, mixing, evaporation, crystallization, distillation, hydrogenation, alkylation, polymerization, condensation, constant temperature reaction, etc.
Mounting form:
Outside foot support, platform support, mobile type.
Drive Motor:
According to the working conditions, the simulation calculation formula is used to select the motor power, the number of poles and the brand; And confirm the explosion protection and protection level.
Sealing form:
Single-acting mechanical seals, direct-coupled single-acting mechanical seals, double-acting mechanical seals, and static spring seals for kettles.
Selection of agitator:
According to the process requirements, the working form of the stirring paddle can be selected by hydrodynamic simulation calculation.
If you have any other needs about the product, you can contact us!
