China 9.5mm Aluminium Rbd 13 Wire Drawing Machine Supplier

Product Description

China 9.5mm Aluminium RBD 13 Wire Drawing Machine Supplier
Product Description
It is composed of shaft melting furnace, holding furnace, casting machine ,automatic shearer, straightener, induction heater, rolling mill, lubrication system, rod quenching device, rod coiler ,electrical control system.
Product Parameters

	UL+Z-1800/9.5+255/14	UL+Z-1500/9.5+255/15
Outlet rod dia(mm)	Ø9.5,Ø12,Ø15	Ø9.5,Ø12,Ø15
Crystallizing wheel dia(mm)	Ø1800	Ø1500,Ø1800
Casting bar section(mm²)	2420	2380
Production capcacity(t/h)	2-5.2	2-4.2
Finished rolling speed(m/min)	7.6	6.15
No.of rolling stand	14	15
Coils'weight(t)	2-3	2-3
Main motor	355KW 750r/min	355KW 750r/min
Roller'dia(mm)	Ø255	Ø255

1. It is mainly used to produce aluminium & aluminium alloy rod of Dia. 9.5mm. The line is competitive in the related international products. In-line filtering & degassing device achieves qualified aluminium for casting.
2. The continuous casting machine has been awarded with the patent right (Patent No.: ZL200720079542.8). Casting wheel is of "H" type, on each side of which three is an adjustable nozzle spraying water to ensure the dense and even crystallization of the cast bar. The pneumatic system is used for tightening steel belt, easy for adjusting.
3. Induction heater meets the technical temperature requirement of the cast bar. With the functions of automatic heating and adjusting .
4. The continuous rolling mill has functions of automatic feeding and stop for rod pile-up. With a unique rolling mode combining two-high-roller stand with three-high-roller stand, the copper is provided with good mechanical property.
5. The main transmission system is in type of DC motor with full digital speed adjusting. By adopting PLC and man-machine interface, it can control the main machine and auxiliary components as complete line linked run. It can also monitor and display the running parameter of machines as well as indicate the failure.
Detailed Photos

Casting Machine Rolling Machine
Shaft Furnace on-line refining degassing

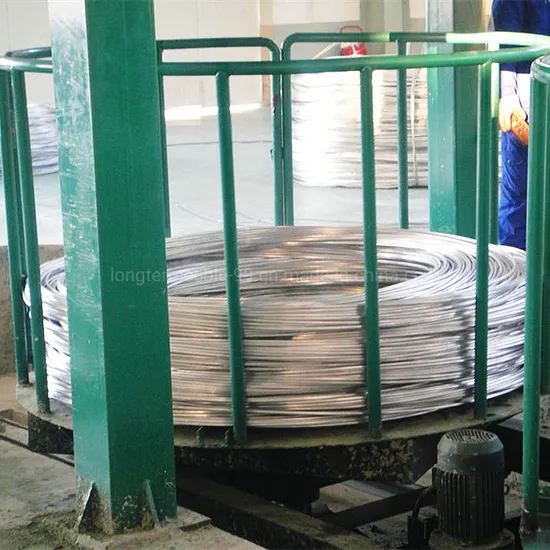

Aluminum take-up Take-up
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Related machine
Wire drawing machine
Cable extrusion machine
Company Profile
Our company has a long history in Cable Production Line Manufacturing. The equipments of production line is popular all over the world and won great recognition from our esteemed customers. Our company has a technical administration team whom engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement win the trust from our domestic and overseas customers, the products are exported to United States, France,Spain,Portugal, New Zealand,Brazil, Mexico, Chile,South Africa, Zambia, Egypt, South Korea,Singapore, Indonesia, Thailand, Iran, etc.
FAQ
− Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipments.
− Q: What is your company's main production?
A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.

− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality,
high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
In order to quote the accurate machine for you, we need the following infomation:
1.Industries used: cable, copper processing, enameled wire.
2.Drawing material: copper wire or aluminum wire. How many tons are used in a month?
3.Commonly used specifications
Welcome to inquiry!

---
