Product Details
Product Description
Product Description
Part I performance index printing method: direct thermal printing
printing paper width: 57.5 ± 0.5mm
printing density: 8 points / mm, 384 points / line
print head life: 50km
effective printing width: 48mm
printing speed: it varies according to the power supply voltage of the printer. The higher the voltage, the faster the speed. The fastest speed of 5V DC power supply is 30mm / s.The fastest speed of12V DC power supply is 70mm / s
Printed characters: 6 * 8 dot matrix western character set 1 and 2; Standard ascii half width characters between 20h and 7FH.
interface form: parallel interface ide 20 pin socket, TTL level and 232 level serial interface ide 20 pin socket.Reserved USB interface.
operating temperature: 5 ~ 50 ℃.
operating relative humidity: 10 ~ 80%.
Storage temperature: - 20 ~ 60 ℃.
Storage relative humidity: 10 ~ 90%.
Power supply: DC 5V ~ 9V, 15W / 5V, 3a ,12V optional
embedded size: 80mm (width) x80mm (height) x57mm (depth)

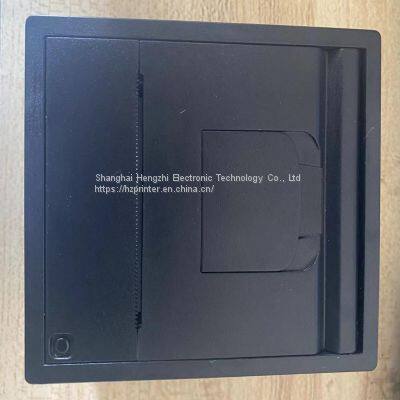

Part II operation instructions 2.1 detailed explanation of printer structure 2.1.1 printer appearance
1.（Lf Button）,（Power）,（Error）
2.Paper Roll
3.Fixing screw
4.Open Door Handle
2.1.2 overall dimensions
2.1.2.1 E09R model overall dimensions and opening dimensions
2.2 Paper roll installation
Pull the door opening handle ① outward, open the paper bin cover ②, put the thermal paper roll ③ into the paper bin, top the paper bin cover ④, and close the paper bin cover
2.3 Installation diagram
Step description:
Step 1: put the micro printer into the panel,
Step 2: open the paper bin cover and screw the screw with a small cross wire cutter.
Step 3: screw the screw and the fixing plate will move until the printer is fixed on the panel
Product features:*Easy paper loading
*Low noise, thermal printing
*Serial port RS232 + USB integrated
*Easy to change paper roll
*It can flexibly embed a variety of instruments
Application:Electronic weighing equipment, fire control system, medical equipment, taxi, cash counter / coin counting machine, industrial control testing instrument and access control equipment
contact information
name：Eric
position：sales manager
What'sup: 0086-13151196529
Email: ericdts@foxmail.com
>>
