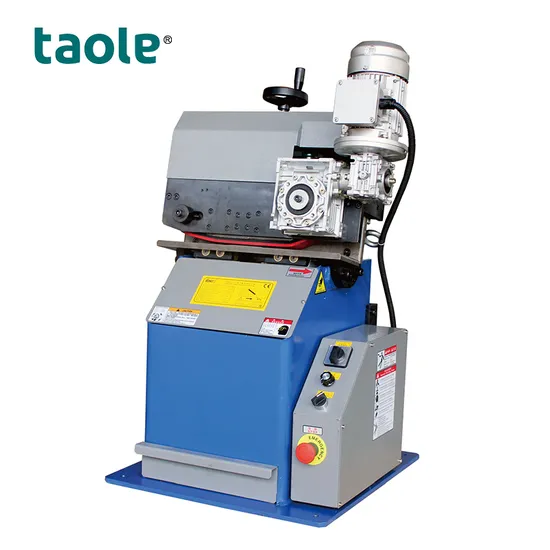

| Edge milling machine is kind of stationary table type edge milling machine specially for small plates. S20T speed at 0~1000mm/min, clamping thickness 3-30mm at 25-80 degree which mainly for small thickness or size plate.S30T speed at 0-1500r/min, Milling head speed adjustable. Clamping thickness 8-80mm at 10-75 degree which is specially for small size but heavy duty metals. This stationary models are suitable for bulk process for metal plates with continously metal feeding. Widly applicated for engineering, machinery , technical schools etc. Machine widely used for beveling on carbon steel, stainless steel, aluminum steel ,alloy steel etc. Available for regular bevel joint V/Y |
| Model No. | TMM-S20T | TMM-S30T |
| Power Supply | STD 380V 50Hz Can be Customized | STD 380V 50Hz Can be Customized |
| Total Power | 1620W | 4520W |
| Spindle Speed | 2000r/min | 500~1050r/min |
| Feed Speed | 0-1000mm/min | 0-1500mm/min |
| Clamp Thickness | 3~30mm | 8~80mm |
| Clamp Width | >20mm | >80mm |
| Process Length | >150mm | >300mm |
| Bevel Angle | 25 ~ 80 Degree Adjustable | 10 ~ 75 Degree Adjustable |
| Single Bevel Width | 0~12mm | 0~20mm |
| Bevel Width | 0~25mm | 0~70mm |
| Cutter Plate | Diameter 80mm | Diameter 80mm |
| Insert QTY | 9 pcs | 6 pcs |
| Bevel Joint | V, Y | V, Y |
| Table Height | 580mm | 850-1000mm |
| Travel Space | 450*100mm | 1050*550mm |
| N.W / G.W | 155/180 kgs | 850/920 kgs |
| Packing Size | 640*850*1160mm | 1210*1310*1750mm |
Adjust the clamp thickness by hand wheel | Bevel Angel Adjustment | Easy to disassemble and replace the milling head |
