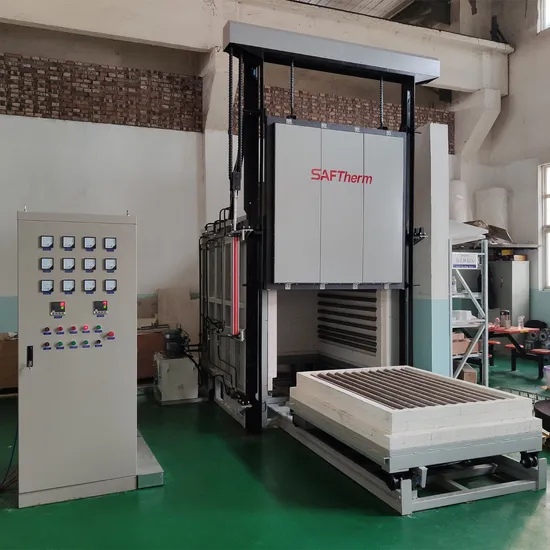

1200c Customized Heating Sintering Electric Industrial Bogie Hearth Car Bottom Furnace

Product Description

Product Description Product Application PID Control 1200c Industrial Ceramic Tile Kiln Car Bottom Heat Furnace Price: This furnace type is used where high temperatures and large specific loading weights are required, and can be primarily found in the area of heating steel slabs and blocks (temperatures between 1200° C and 1380° C) as well as in the ceramics and heat-resistant industry (temperatures between 1000° C and 1850° C). The return of the bogie hearth is done either on the side ode below the furnace.

Model No.	STT-96-12	STT-288-12	STT-640-12
Chamber size(mm)W*D*H	400*600*400	600*800*600	800*1000*800
Power supply	380V/30KW	380V/50KW	380V75KW
Max. temperature	1200 ºC
Continuous temp.	1100ºC
Heating rate	≤ 25ºC/min ( suggest 15ºC/min for longer life using of furnace )
Accessories	One pair of high temperature furnace gloves; One pair of crucible stongs
Optional devices	Paperless recorder Stainless steel exhaust chimney Alumina crucible

Main Features 1. The furnace material is mullite brick, strong and durable and does not drop powder in high temperature, heat capacity is small, energy saving above 50%
2. The heating element is made of High quality Alloy Resistance Wire, which can bear large load, stable and long service life
3. The heating rate is fast, from room temperature to 1000 degrees, generally takes 15-30 minutes
4. High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C
5. Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
6. Electronic components are used Delixi products, with leakage protection, safe and reliable
7. The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.
8. When the instrument program is set, just press the run button and the next work will be completed automatically
9. Optional air inlet can be used to purge and protect the inert gas such as air. It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location. Detailed Photos
Certifications
Packaging & Shipping 1.The furnace was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks

Delivery Time: 15 working days against receiving advanced payment
Port: Shanghai/Qingdao
Company Profile Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan, China Free Trade Zone. SANTE products cover 1000ºC~1800ºC Muffle furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000ºC Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on

Our goal is to continuously meet the various demands for various kinds of high temperature heating treatment lab furnaces and to be the world first-class enterprise with providing excellent service and high-quality products for our cooperation partners!
After Sales Service

Our customer
FAQ 1: Are you a factory?
Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.
2: Do you have customization or OEM service?
We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
3: What is the delivery time?
Normally within 15 working days after receiving the advanced payment or depends on order quantity.
4: How can you guarantee the production quality?
Firstly, we are ISO9001:2008 and CE certified factory, all the processes are strictly following the standard of the metallurgy process; secondly. We have QC department who perform strictly in each producing process including package.
5: How long is your furnace warranty period?
One year(expect thermocouple and heating element), lifetime support
6: What payment terms does SAFTHERM support?
T/T, L/C and so on.

---
