Automatic block machine interlocking blocks machine cement block machine price

Product Details

Product Description

Product Description
QT9-15 automatic block machine equipment adopts advanced vibration technology, and the automatic feeding forming system uses crutch arm to avoid damaging the green block when lifting the mold base. Advanced vibration technology and different vibration modes are adopted for feeding and forming to ensure the high quality of feeding and forming.
This machine is suitable for large and medium-sized investment customers.
QT9-15 Technical speciafications

Vibration Frequency	3800-4500r/min
Main machine weigh	14500KG
Dimension	9800*4050*2800mm
Capacity	48.9KW
Cycle Time	15-23(S)
Rated pressure	31.5mpa
Vibration force	105KN
Pallet size	1350*680mm

QT9-15 Block Machine Technical Parameter

Item	Specification（mm）（L*W*H）	Quantity per hour

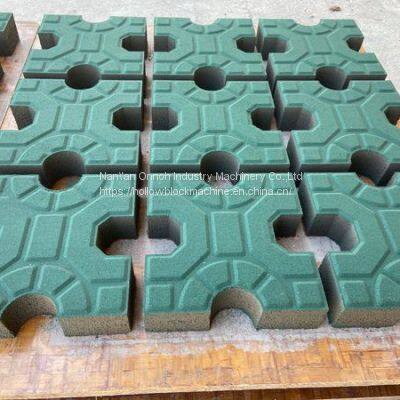

Concrete block	390*190*190	1458-1620
Solid block	240*115*53	8100-9000
Porous block	240*115*90	4500-5000

1. The onnoh automatic brick making machine system can collect and stack the produced concrete bricks. At the same time, it can clean and stack trays.
2. Save 5-6 people and improve production efficiency.
3. As shown in the figure, 360 degree rotating manipulator, stacker, frequency converter and proportional valve control system. Therefore, the stacker can clamp bricks accurately and operate stably.
4. As shown in. Independent intelligent console, using German Siemens PLC component control system and LCD to realize man-machine dialogue.
5. Push and reassemble the brick in a unique way. The brick can be adjusted with the size of a square.
6. German control system and photoelectric switch are used to ensure correct movement of each action.
