Plasitc Inject/Injection Mould/Moulding Machine/Machinery 800ton Factory

Product Description

Specification of D-RI800 plastic injection moulding machine
1. Product details:
2. Technical data of D-RI800

Model Item	D-RI 800
Screw diameter(mm)	100
Injection pressure(Mpa)	182
Shot weight(PS) (g)	3336
Screw L/D ratio	20:1
Screw stroke (mm)	460
Screw speed(r.p.m)	5-130
Injection rate (cm3/s)	667
Plasticizing capacity(g/s)	80
Clamping stroke(tons)	800
Mould clamping stroke (mm)	1000
Max. daylight opening (mm)	2000
Mould thickness (Min.-Max.) (mm)	450-1000
Space between tie-bars (mm)	1000*1000
Hydraulic ejection force (tons)	20
Hydraulic ejector stroke (mm)	260
Max. pump pressure(Mpa)	16
Motor power(KW)	37+45
Heater power(KW)	36
Temperature control zones	7+1
Tank capacity (L)	1800
Machine dimension(L*W*H)	10300mm*2700mm*3290mm
Machine weight(ton)	48

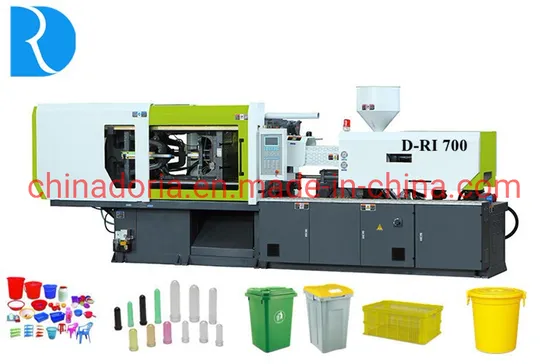

3. Pictures of machine
4. Frequently Asked Questions:
Q: What kind of files do you accept?
A: AI, PDF, high resolution JPG, Words.
Q: Which products of the machine could produce?
A: Plastic chair, plastic basket, plastic pipe etc.
Q: How long can I expect to get the sample?
After we test the machine, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
Q: Packaging & Shipping:
Packing: plastic film or as per customers' specific requirements.
Shipping: The volume of machine is very big, so we usually ship by full container.
5. About us:
Plastic products and equipments manufacturer:
PET preform
Plastic injection moulding machine
Blow moulding machine
Bottle cap & handle
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products. Welcome everyone to visit us, we hope we will have good chance to cooperate!
6. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
