Highsun High Precision Factory Injection Molding Machine for Pet Machine

Product Description

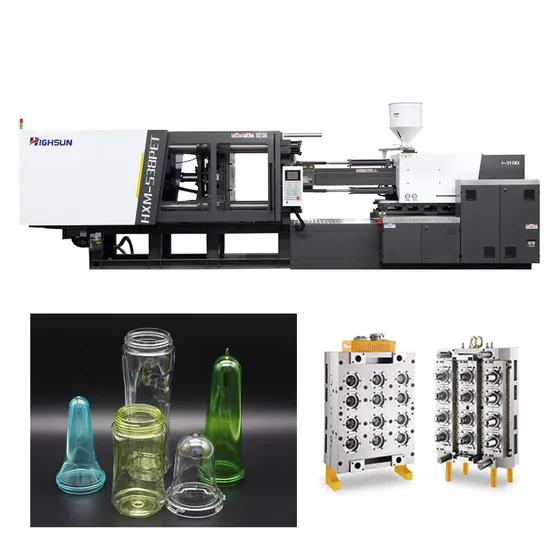

1.Picture
2. Specifications

MODEL:HX(*)538PET
TECHNICAL PARAMETER TABLE
INJECTION UNIT	SCREW DIAMETER	Mm	95
	SCREW L/D RATIO	L/D	24
	INJECTION CAPACITY (THEORETICAL)	cm3	3015
	INJECTION WEIGHT(PET)	g	3317
	INJECTION PRESSURE	MPa	149
	INJECTION RATE	g/s	700
	PLASTICIZING CAPACITY	g/s	95
	SCREW SPEED	rpm	130
CLAMPING UNIT	CLAMP FORCE	KN	5380
	OPEN STROKE	mm	830
	MAX. MOULD HEIGHT	mm	830
	MIN. MOULD HEIGHT	mm	330
	SPACE BWTWEEN TIE-BARS (W×H)	mm	860*810
	EJECTOR STROKE	mm	230
	EJECTOR FORCE	KN	181
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR POWER	KW	55
	HEATING POWER	KW	37.85
	MACHINE DIMENSION (L×W×H)	m	9.05*2.14*2.61
	MACHINE WEIGHT	t	21
	OIL TANK CAPACITY	L	1156

Specializing in PET series of injection molding machines
1.Adopt the special designed screw and large torque melt motor, in order to facilitate PET raw materials plasticizing and molding;
2.The ejector system can well meet the production of PET products;
3.With the high-power motor-pump system, it can achieve shorter cycle time;
3.Application
4. Actual shooting of trial model
Refernce
Machine: HXM 418-PET Machine: HXM 358-PET
1L bottle preform Bottle preform
Mould: 48 cavities Mould: 48 cavities
Weight: 30 g Weight: 12 g
Cycle time: 22s Cycle time: 17s
5. Cabinet case
Transportation by sea or rail to Mexico, Bangladesh, Turkey, Ethiopia, Algeria, Nigeria, Saudi Arabia, Iran, Russia, Sudan, Thailand, Peru and other countries.
6. Workshop
We have six workshops, which are machine development workshop, machine storage workshop, spare parts storage workshop.
1 workshop: SP(Middle-speed injection molding machine) and HXYD(Fully-electric and high-speed injection molding machine) production R & D workshop, also stored in the injection molding machine production required parts.
2 workshop: HXM(Servo energy injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 128tons, 158tons, 418tons, 478tons, HXH 260tons, 280tons, 430tons and so on.
3 workshop: HXM(Servo energy injection molding machine), PVC injection molding machine, PET injection molding machine, HXS(Clear two-color injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 98tons, 268tons, from 538tons to 2500tons, HXH 160tons, 200tons, 350tons, 380tons, HXS160tons, 200tons and so on.
4 & 5 workshop: HIGHSUN's independent R & D workshop, automatic processing center. According to customer feedback to the performance of the machine constantly improve, to provide customers with better injection molding machines.
6 workshop: Stored in screw barrel, hopper, hydraulic motor, thermocouple, valve, sheet metal injection molding machine accessories.
7. HIGHSUN
HIGHSUN is one of the most professional lnjection Molding Machine manufacturer with morethan 50 years' history (founded 1973)in Ningbo, China.
As one of the leading innovator and developer of lniection Molding Machine, HIGHSUN has the world's first class production plant occupied more than 100 million square ft; equipped with the most advanced CNC machining system and processing equipments & inspection devices (CNC utilizationratio: above 83%), achieve with mass production with higher-quality and quicker-delivery.
Production capacity may reach 7000sets per year. Supply variety of series with clamping force from 98ton to 2500ton coverage with HXM(servo drive), HXH (high-speed performance), SP(middle-speed), HXYD(Hybrid & Full electric), HXZ(two-platen), HXS(double color) and special solutioras PET series, PVC series etc.
Realized more than 110million US$ sales in 2018, constantly keep 15% increase in sales in the past 3years; and from 2014 to 2018, a fifth consecutive HX awarded TOP-3 leader by CPIMMA for comprehensive strength of IMM manufacture and develop.
Based on strict management,superior quality, stressing reputation and paying attention to service. HIGHSUN hot sale to Europe and United States, Asia, Africa and the world, won majority ofcustomers good reputation and recognition.
8. Certification

---
