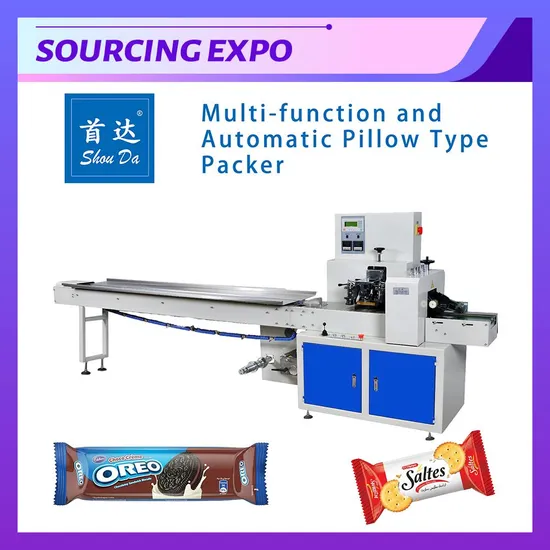

Factory Price High Speed Manual Automatic Flow Pack Horizontal Food Pillow Packing Machine

Product Description

Factory Price High Speed Manual Automatic Flow Pack Horizontal Food Pillow Packing Machine
Production Line

Model:	SDZSJ-250	SDZSJ-350	SDZSJ-450	SDZSJ-600
Film Width:	Max.250 mm	Max.350 mm	Max.450 mm	Max.600 mm
Film Width Range:	80-114mm/114-180mm/ 140-250mm	140-250mm/250-320mm/ 320-350mm	250-320mm/320-400mm/ 400-450mm	320-400mm/400-450mm/ 420-600mm
Bag Width (Only choose one range):	25-42mm/42-75mm/55-110mm/ 20-30mm/25-42mm/55-75mm	55-110mm/110-145mm/ 145-160mm	110-145mm/145-185mm/ 185-210mm	145-185mm/185-210mm/ 195-285mm
Bag Length (Only choose one range):	50-115mm/45-90mm/65-190mm/ 120-280mm/90-220mm/150-330mm	65-190mm/120-280mm/ 90-220mm/150-330mm	120-450mm/150-470mm/ 180-500mm	120-450mm/150-470mm/ 180-500mm
Product Height:	Max.35-55mm	Max.45-60mm	Max.80-110mm	Max.80-110mm
Speed:	40-230 Bags/min	40-230 Bags/min	30-180 Bags/min	30-150 Bags/min
Weight:	368kg	417kg	575kg	596kg
Power:	220V 50/60HZ Single Phase	220V 50/60HZ Single Phase	220V 50/60HZ Single Phase	220V 50/60HZ Single Phase
Dimension:	L 3770*W 670*H 1450mm	L 4020*W 745*H 1450mm	L 4020*W 820*H 1450mm	L 3990*W 1000*H 1468mm
Film Roll Diameter:	Max. 320mm	Max. 320mm	Max. 320mm	Max. 320mm

Our service:Pre-sale: Accept your inquiries and organize special technical seminars to discuss customer equipment requirements. Provide you with a detailed "equipment plan", including:
1. Equipment samples;
2. The latest technology and technology of related equipment at home and abroad, and the comparison of the advantages and disadvantages of products of related manufacturers;
3. GMP process design, plant water and electricity layout;
4. Process design of mechanical equipment;
5. Related product configuration, spare parts, packaging and after-sales service;
6. Determine the equipment and quote item by item.On sale:1. Keep in touch with you at all times, invite customers to visit the company, and supervise production equipment;
2. Prepare the equipment manual, file card and tracking card and other related software, and accept your acceptance at any time;
3. Regularly report the production progress of the equipment to the customer.After-sales (operate according to the international standard after-sales service)1. One-year warranty, lifetime service, 24-hour after-sales service website, hotline and fax will be opened for you, and domestic customers will basically arrive at the designated location within 24-72 hours;
2. The spare parts inventory is fully stocked for a long time, and the wearing parts, consumable parts and important accessories are guaranteed to respond to customers in the first time;
3. Regularly return visits to each customer, once a year, and record the equipment file records.
Our company's advantages: 1. The practicability of the equipment: The single machine designed and manufactured by Shouda Company has reliable quality, long service life, low failure rate and convenient maintenance. It can run for more than three to five years without failure under normal use. 2. The operability of the equipment: It is easy to operate, easy to learn and master, suitable for people with different educational levels. At the same time, the equipment is highly standardized and has a strong matching ability, which can easily and quickly replace various parts and components of different specifications. 3. Appearance of the equipment: The appearance design of the equipment is beautiful and generous, in line with ergonomic principles. No matter in terms of material, shape, color, or size ratio, we strive to be more humanized design, so that the appearance and internal quality of the equipment and mechanical performance. , achieve the most perfect unity. 4. Advanced equipment:A. The equipment realizes automatic unmanned operation from automatic bottle unscrambling, bottle washing, filling, sealing, capping, labeling, unpacking, packing, box packaging and other processes.B. Successfully solve the instant foaming, dripping and filling accuracy of filling.C. Successfully solve bottle mouth small-diameter filling and adopt vacuum filling method.D. Successfully developed leading technology in the industry HCF-134A filling machine.E. Adopt import high-quality filling pump.F. The magnetic capping method is adopted, which does not damage the cap and does not loosen.G. Successfully solve the problems of bottle feeding and out of the bottle, broken bottles and bottle pouring of special-shaped bottles.

---
