Fqhy 6032zz 6032-2RS 2rsh 2rsl Seals Type Deep Groove Motor Ball Bearing 6000zz

Product Description

FQHY 6032zz 6032-2RS 2rsh 2rsl Seals Type Deep Groove Motor Ball Bearing 6000zzProduct Description

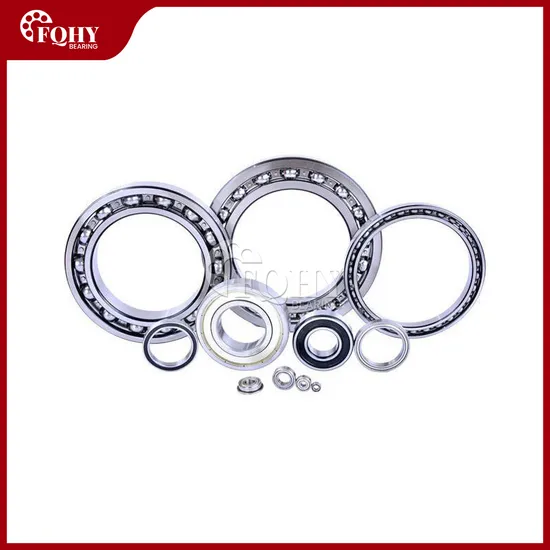

Deep Groove Ball Bearing
Deep groove ball bearings (GB/T 276-2003) The original list of radial ball bearings is the most widely used rolling bearing. It is characterized by small frictional resistance and high speed and can be used on parts that bear radial loads or joint loads that act simultaneously in radial and axial directions and can also be used on parts that bear axial loads, such as small-power motors, Automotive and tractor gearboxes, machine tool gearboxes, general machines, tools, etc.
Deep groove ball bearings are the most common type of rolling bearings:The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls, and a set of cages. There are two types of deep groove ball bearings: single-row and double-row. The structure of deep groove balls is also divided into two types: sealed and open. The open type means that the bearing does not have a sealed structure. seal. The material of the dust-proof sealing cover is stamped steel plate, which simply prevents dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the grease in the bearing from overflowing.The type code of a single row-deep groove ball bearing is 6, and the code name of a row row-deep groove ball bearing is 4. Its structure is simple and easy to use, and it is the most commonly produced and widely used type of bearing.
Product Parameters

Product Name	Deep Groove Ball Bearing
Keywords	Miniature Deep Groove Ball Bearing
Width Size	9mm - 300mm
Diameter Size	30mm - 1600mm
Inner Diameter Size	10mm - 1320mm
Bore Size	3-220 mm
Size	5mm - 500mm
Clearance	2C0 03 C4 C5
Bearing Material	Gcr15
Number of Rows	Single Row/Double Rows
Seals Type	Z Zz 2RS Znr 2RS1 2rsh 2rsl 2rz 2z 2znr
General Purpose	Gearbox/Instrumentation/Motor
Precision Rating	P0 P6 P5 P4 P2
Sample	Free
OEM or ODM	Accept

CHROME STEEL*				Dimensions in mm Unless Otherwise Specified
Bore	O.D.	Width	Open Bearing	Shielded Bearing	Sealed Bearing	Basic Load Ratings
						KN
			HNS	HNS	HNS	Dynamic	Static
			Reference	Reference	Reference	C	Co
20	42	12	6004	6004ZZ	6004-2RS	7.22	4.46
	47	14	6204	6204ZZ	6204-2RS	12.7	6.5
	52	15	6304	6304ZZ	6304-2RS	15.9	7.8
25	47	12	6005	6005ZZ	6005-2RS	10.1	5.85
	52	15	6205	6205ZZ	6205-2RS	14	7.8
	62	17	6305	6305ZZ	6305-2RS	22.5	11.6
	80	21	6405	6405ZZ	6405-2RS	36.1	19.4
30	55	13	6006	6006ZZ	6006-2RS	10.2	6.91
	62	16	6206	6206ZZ	6206-2RS	19.5	11.2
	72	19	6306	6306ZZ	6306-2RS	28.1	16
	90	23	6406	6406ZZ	6406-2RS	43.4	23.9
35	62	14	6007	6007ZZ	6007-2RS	16	10.3
	72	17	6207	6207ZZ	6207-2RS	25.5	15.3
	80	21	6307	6307ZZ	6307-2RS	33.2	19
	100	25	6407	6407ZZ	6407-2RS	55	31
40	68	15	6008	6008ZZ	6008-2RS	13	11.5
	80	18	6208	6208ZZ	6208-2RS	29.8	18
	90	23	6308	6308ZZ	6308-2RS	39.8	23.3
	110	27	6408	6408ZZ	6408-2RS	65.5	37.5
45	75	16	6009	6009ZZ	6009-2RS	21	14.9
	85	19	6209	6209ZZ	6209-2RS	32.2	21
	100	25	6309	6309ZZ	6309-2RS	51.1	30.5
	120	29	6409	6409ZZ	6409-2RS	77.5	45.5
50	80	16	6010	6010ZZ	6010-2RS	22	16.2
	90	20	6210	6210ZZ	6210-2RS	34	22.5
	110	27	6310	6310ZZ	6310-2RS	59.9	36.9
	130	31	6410	6410ZZ	6410-2RS	92.2	55.2
55	90	18	6011	6011ZZ	6011-2RS	30.4	22
	100	21	6211	6211ZZ	6211-2RS	43.3	28.1
	120	29	6311	6311ZZ	6311-2RS	71.5	44.6
	140	33	6411	6411ZZ	6411-2RS	100	62.5
60	95	18	6012	6012ZZ	6012-2RS	30.7	22.7
	110	22	6212	6212ZZ	6212-2RS	46.1	31.5
	130	31	6312	6312ZZ	6312-2RS	79.4	50.4
	150	35	6412	6412ZZ	6412-2RS	109	70
65	100	18	6013	6013ZZ	6013-2RS	32.1	24.9
	120	23	6213	6213ZZ	6213-2RS	54.2	39.3
	140	33	6313	6313ZZ	6313-2RS	89.5	59.7
	160	37	6413	6413ZZ	6413-2RS	118	78.5
70	110	20	6014	6014ZZ	6014-2RS	38.6	30.6
	125	24	6214	6214ZZ	6214-2RS	58.9	43.6
	150	35	6314	6314ZZ	6314-2RS	101	66
	180	42	6414	6414ZZ	6414-2RS	140	99.5
75	115	20	6015	6015ZZ	6015-2RS	31	33.1
	130	25	6215	6215ZZ	6215-2RS	64.3	47.5
	160	37	6315	6315ZZ	6315-2RS	111	74.2
	190	45	6415	6415ZZ	6415-2RS	154	115
80	125	22	6016	6016ZZ	6016-2RS	47.5	39.8
	140	26	6216	6216ZZ	6216-2RS	68.1	53.3
	170	39	6316	6316ZZ	6316-2RS	120	83.9
	200	48	6416	6416ZZ	6416-2RS	163	125
85	130	22	6017	6017ZZ	6017-2RS	50.8	42.8
	150	28	6217	6217ZZ	6217-2RS	83.2	64
	180	41	6317	6317ZZ	6317-2RS	132	96.5
	210	52	6417	6417ZZ	6417-2RS	175	138
90	140	24	6018	6018ZZ	6018-2RS	58	49.8
	160	30	6218	6218ZZ	6218-2RS	92.7	71.3
	190	43	6318	6318ZZ	6318-2RS	145	108
	225	54	6418	6418ZZ	6418-2RS	192	158
95	145	24	6019	6019ZZ	6019-2RS	57.8	50
	170	32	6219	6219ZZ	6219-2RS	105	79.1
	200	45	6319	6319ZZ	6319-2RS	157	122
100	150	24	6020	6020ZZ	6020-2RS	64.5	56.2
	180	34	6220	6220ZZ	6220-2RS	118	88.4
	215	47	6320	6320ZZ	6320-2RS	173	140
105	160	26	6021	6021ZZ	6021-2RS	71.8	63.2
	190	36	6221	6221ZZ	6221-2RS	126	98.8
	225	49	6321	6321ZZ	6321-2RS	173	145
110	170	28	6022	6022ZZ	6022-2RS	81.9	72.9
	200	38	6222	6222ZZ	6222-2RS	136	112
	240	50	6322	6322ZZ	6322-2RS	193	171
120	180	28	6024	6024ZZ	6024-2RS	88.7	79.7
	215	40	6224	6224ZZ	6224-2RS	139	112
	260	55	6324	6324ZZ	6324-2RS	217	196
130	200	33	6026	6026ZZ	6026-2RS	105	96.8
	230	40	6226	6226ZZ	6226-2RS	148	125
	280	58	6326	6326ZZ	6326-2RS	218	205
140	210	33	6028	6028ZZ	6028-2RS	116	108
	250	42	6228	6228ZZ	6228-2RS	179	167
	300	62	6328	6328ZZ	6328-2RS	275	272
150	225	35	6030	6030ZZ	6030-2RS	132	125
	270	45	6230	6230ZZ	6230-2RS	190	183
160	240	38	6032	6032ZZ	6032-2RS	145	138
	290	48	6232	6232ZZ	6232-2RS	215	218

FAQ
Q1: What the MOQ of your company?
Our MOQ is normally 100pcs, anyway, lower MOQ is also acceptable with a little higher cost, sure the more you purchase the cheaper cost you could get.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: Could you supply a sample for free?
Yes, we can supply samples for free but the shipping costs pay.
Q4: Does your factory have any certificates?
Yes, we have ISO 9001:2008, IQNET, and SGS. If you want others like CE, we can do it for you.
Q5: Is your company a factory or Trade Company?
We have our own factory
Q6: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, ceramic, and plastic materials.
Q7: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q8: Could you tell me the payment terms your company can accept?
T/T.Western Union, PayPal
Q9: Could you tell me the delivery time of your doors?
If stock, in 7 days or based on your order quantity
Q10: Can you give me a discount?
Yes, you can, contact me immediately to get more discounts.

---
