New Design Miter Saw Concrete Saw Cutting Machine

Product Description

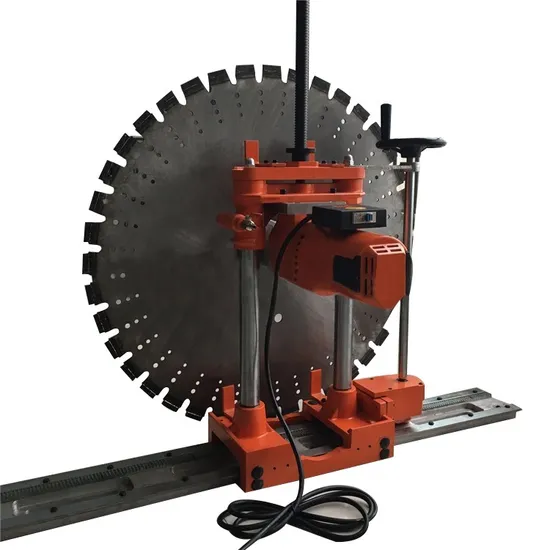

New Design Miter Saw Concrete Saw Cutting Machine

Product Description:
Wall saw cutting machine is mainly used for cutting or slitting of reinforced concrete wall, brick wall or stone, building or old building renovation, reinforcement, change design, etc. It can cut large-area wall such as door hole, window or elevator hole. Cutting.
Application of the machine:
1. general reinforced concrete walls, board cutting, demolition or the door hole.
2. cutting surface required to be a smooth, straight, beautiful concrete cutting.
3. cutting depth according to the blade size adjustment, the current use
4. 1600 mm blade which Maximum cutting depth up to 600mm. The whole set of machine inculdes:
1. one frame with an electric motor, 220V, 50Hz, 6580w.
(We could customize the motor according to your requirement.)
2. one disk, 800-1000mm or customized.
3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors
Simple Operation instructions:
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the disc and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for disc in/out, side handle is for machine movement.)
Technical parameter:

Model	YG-800	YG-1000	YG-1200
Voltage	220v	220v	220v
Power	6200w	6580w	6980w
Max. Cutting depth	320mm	400mm	500mm
Disk diameter	800mm	1000mm	1200mm

Detailed Images:
Certifications:
Our Service: Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
Packing & Delivery: Henan Yugong Machinery Co.,Ltd.is a collection of mining equipment, tunnel bridge construction equipment, road surface construction equipment etc. with research and development, production, sales as one of the largest engineering machinery manufacturing enterprises. Main products handled by our company is currently involved in highways, Bridges, tunnels, subway tunnels, high-speed rail, light rail transit mining resources exploitation, coal and non coal mine area.
We believe that good product can prove everything, including the quality, the attitude, the newest craftsmanship and the product concept to innovate a good product, every staff is trained and practiced professionally, so we can recommend you the most appropriate equipment. Every machine has to be strictly examined before delivery. Any question about the machine will be replied within 24 hours.We are expecting your arrival and right here waiting for you all the time!
