Product Details
Product Description
Product Description
Motor grader is the main machinery used for shaping and leveling in earthwork.It is widely used in theground and stable layer leveling of highway and air-port.In recent years,with the application expanding and high productivity,the use of grader hasbeen promoted in bulldozing and paving of roadbedmixture,reconditioning of original landforms,etc.Besides,it can be applied to snow removing in coldregion.Featuring 260HP power,strong strength ofmachine components and sufficient driving force,GR2605AT is a heavy-duty motor grader researchand developed especially for high-load workingcondition.
Model NO.
gr100
Condition
New
Application
Railway, Mine, Farmland, Highway
Transmission
Power
Walking Mode
Wheeled
Type
Small Grader
Reverse Speed
24km/H
Forward Speed
38km/H
Space of Front and Rear Axles
4885mm
Working System Pressure
16MPa
Total Weight
7000kg
Maximum Gradeability
20%
Transport Package
Comply with Export Packaging Requirements
Specification
7130*2375*3150mm
Trademark
XCMG
Origin
Jiangsu, China
Production Capacity
1000 Unit/Units Per Year
Product Description

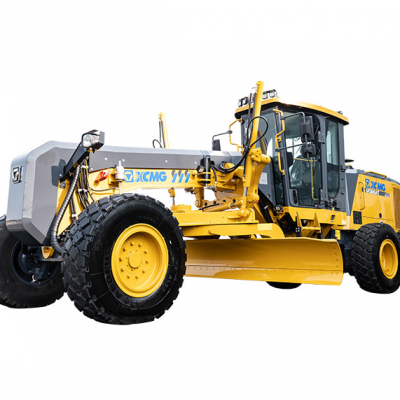

XCMG Road Machinery 102hp gr 100 Small Motor Grader Malaysia.
XCMG motor grader GR100 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Advantages and Highlights:
1. XCMG motor grader GR100 adopts Dongfeng Cummins 4BTA3.9-C100-II (SO11847) turbocharged diesel engine with large output torque and power reserve coefficient and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
3. The drive axle is a dedicated XCMG axle.
4. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
5. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
6. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
>>
