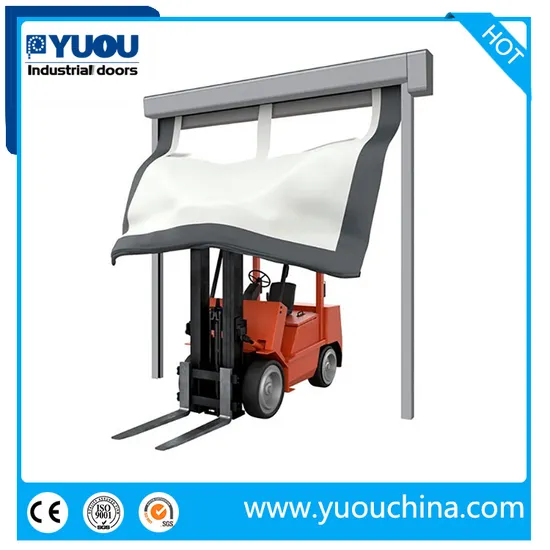

Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Quick Acting Door

Product Description

Description
Clean Room High Speed Rolling Up Doors are widely used for food and drug factory, clean room and dust-free workshop, they fit for the areas where have very strict requirement of the hygienic and cleanness indoor requirement.
Technical data:

Clean Room Roller Shutter Door Control Box High Speed Plastic Door
Max dimension	width * height 5000mm*5000mm
Power supply	220±10%V, 50/60Hz. Output power 0.75-1.5KW
Normal speed	open1.2m/s close 0.6m/s
Max speed	open 2.5m/s close 1.0m/s
Protection Level Of Electric	IP55
Control system	servo type
Driving system	servo motor
Wind resistance	Beaufort scale8(25m/s)
available colors of fabric	yellow ,blue ,Red ,grey,white

Structure Diagram:
Product Details:
1. PVC Fabric:
A.Material:PVC Fabric;Standard 1.0mm thick(950g/sqm); B.Available thickness:1.2mm-1.5mm;Flameresistant material.
2. Frame and tracks: Two guide rails,one top cover and one motor cover included.Thickness:1.5mm for guide rail,1.0mm for cover box. A.Standard material:Galvanized steel,surface is painted.
B.Optional material:304 stainless steel or aluminum alloy.
3. Self-Repairing rail structure:
4. Motor and Controller:
A.Italy servo technology motor.More stable and quicker response. B.Italy servo technology controller with English interface,easy to use.
C.Double encoder,absolute encoder+inbuilt incremental encoder,more accurate and few maitenance.
5. Colors:Blue\Yellow\Orange\Grey\White\Full clear\Green
6. Safety devices(Below three devices are included as standard): A.Safety photo cell sensorWhen there is human or vehicle under the door,the door will stop closing and get up automatically.Thiswill avoid accident collisions. B.Safety bottom airbag sensor When the bottom bar of the door touches something,it will stop closing immediately and get up automatically. C.Alarm light and emergency buttons The lamp flashing to warn passing human or vehicles.And buttons on both side.
7. Operation methods:
Vehicle loop detector,Radar sensor,Push button,Pull switch,Remote control
You will receive:
Products real shot:

---
