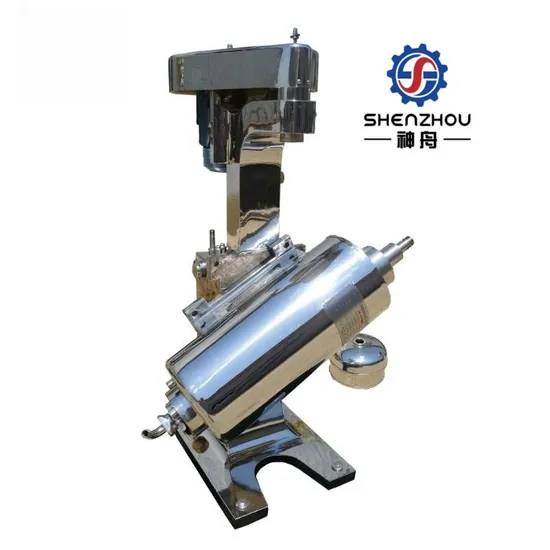

GF105-J 500L/H Palm Oil Tubular Centrifuge

Product Description

GF105-J 500L/H Palm Oil Tubular Centrifuge
Descripition
The machine is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
GF model: Liquid with big density forms the outer liquid circle, while liquid with small density forms the inner circle. Then liquid will flow out of the upper outlet accordingly, and those little solid will be deposited on the drum wall, and be removed by manual after machine stops. Technial Parameter:

ITEM		GQ/GF75	GQ/GF105	GQ/GF125		GQ/GF150
Drum	ID(mm)	75	105	125		147
	Height (mm)	450	730	730		730
	Sedimentation volume(L)	2.67	6	8		10
	Max speed(r/min)	21000	17500	16500		15800
	Max separation factor	22500	18500	17300		16800
	Inlet nozzle diameter (mm)	3/4/6	4/6/8	6/8/10		8/10/12
	Material inlet pressure (Mpa)	≥0.05
	Capacity (water capacity)L/H	670	1600	2200		3200
	Actually Capacity L/H(according to the solid content)	50-80	100-200	200-300		300-700
Motor model		3 phase two pole motor
Motor power (kw)		1.5	2.2		3		3
Machine dimension (mm)		500*700*1300	600*1000*1600		600*1000*1600		600*1000*1600
Machine weight (kg)		300	460		490		510

About Reyes
SHENZHOU Separator has been at the forefront in the field of centrifugal separation technology for more than 50 years - which is why centrifuges from SHENZHOU Separator perform this crucial separation function exceptionally well.
Today, SHENZHOU Separator is the leader in mechanical separating technology in China. SHENZHOU developments are used in a wide range of areas - in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry.
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you ASAP.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.

---
