12.6Kw Hybrid Solar A+++ Full DC Inverter Heat Pump Water Heater

Product Details

Product Description

Product Description

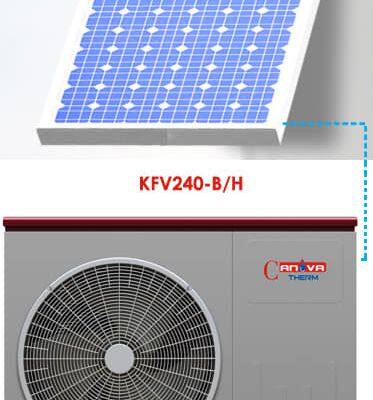

Canova Hybrid Solar heat pump works with solar panel unstable DC power directly from 7am to 17pm day time.
Rainy day, it will work mix power AC+DC and priority from solar power.
At night, it automatically get grid AC power same as Canova normal DC inverter heat pump.
The unit with WiFi function can be controlled anywhere through WiFi or Bluetooth,and App with DC power meter and AC power meter,you can fully check how much energy saving or energy using through App smart power meter function.
Features
Hybrid Solar connection(optional)
Mitsubishu/GMCC compressor with R410A/R32 refrigerant.
Heating + cooling + hot water
Anti-freezing work in -25 degrees low temperature.
Thermostatic heating element for evaporator and anti-frosting protection.
Energy-saving 80%.
Automatic defrosting function included (With reverse valve inside).
Wilo/Grundfos water pump installed inside.(optional)
OEM/ODM service

Model			KFV240-B	KFV480-B	KFV480-B/3	KFV640-B
Max Heating Capacity		KW	12.6	23	23.2	28.5
Heating Capacity Range		KW	4.2~12.6	8~23	8.1~23.2	10~28.5
Heating (A7/W35)	Capacity	KW	10.5	19	19.3	25
	Input Power	KW	2.28	4.04	4.02	5.32
	Current	A	10.9	19.3	7.2	9.5
	COP		4.6	4.7	4.8	4.7
Heating (A7/W45)	Capacity	KW	10.3	18.2	18.6	24.3
	Input Power	KW	2.63	4.63	4.72	6.15
	Current	A	12.6	22.2	8.4	11.0
	COP		3.92	3.93	3.94	3.95
Cooling (A35/W7)	Capacity	KW	7.8	15.2	15.5	20.5
	Input Power	KW	2.68	5.21	5.22	6.95
	Current	A	12.8	24.9	9.3	12.4
	EER		2.91	2.92	2.97	2.95
Power Supply			220V~230V/1PH		380V~415V/3PH
Frequency Range		Hz	30-85	30-85	30-85	30-85
ERP (35ºC)			A+++	A+++	A+++	A+++
ERP (55ºC)			A++	A++	A++	A++
Heating output water temp		ºC	25~60
Cooling output water temp		ºC	5~20
Refrigerant			R32 / R410A
Controller			LCD Wire Controller
Compressor	Brand		Panasonic
	Type		DC Inverter Twin Rotary
Fan motor	Type		DC Inverter
	PCS		1	2	2	2
Evaporator	Type		Hydrophilic Aluminum Fin Heat Exchanger
Water side heat exhanger	Brand		SWEP
	Type		Plate Heat Exchanger
	Pressur Drop	kPa	15	25	25	30
Throttle unit			Electronic Expantion Valve
Water pump (Built-in)	Brand		Grundfos
	Type		DC Inverter
	Head	m	8	8	8	10
Ambient Temp range		ºC	-30~45
Electric heater (Built- in)		Kw	2	3	3	3
Expansion tank (Built- in)		L	3	5	5	5
Water flow		m3/h	1.8	3.3	3.3	4.3
Pipe size			DN32	DN32	DN32	DN32
Noise		dB(A)	≤58	≤63	≤63	≤65
Dimension		mm	1060*390*950	1060*390*1360	1060*390*1360	1060*390*1560
Weight		kg	90	140	145	170

Features
Hybrid solar connection(optional)
Mitsubishu/GMCC compressor with R410A/R32 refrigerant.
Heating + Cooling + Hot water
Anti-freezing work in -35 degrees low temperature.
Thermostatic heating element for evaporator and anti-frosting protection.
Energy-saving 80%.
Automatic defrosting function included (With reverse valve inside).
Water pump installed inside.
OEM/ODM service

---
