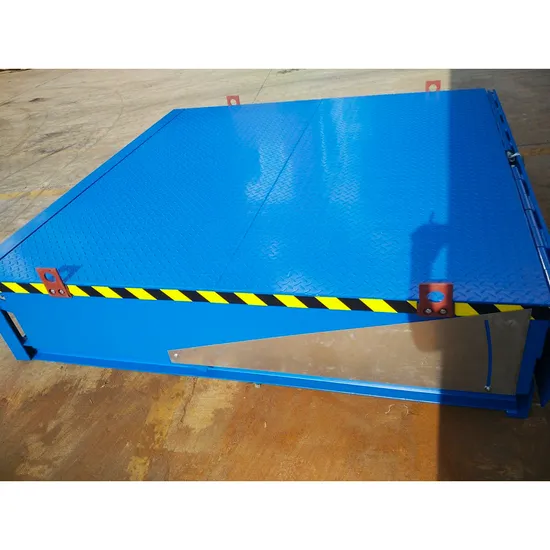

Manual Automatic Stationary Yard Ramp Fixed Loading Platform Hydraulic Dock Leveler Lifting Equipment

Product Description

MORE PARAMETERS
Main Board	Q235B steel plate with anti-slide pattern,thickness:6 / 8 mm;blasting surface treatment and powder coating
Lap Plate	Q235B steel plate with anti-slide pattern,thickness:14 / 16mm;The surface treatment is blasting and powder coating
Hinge	Open type, 8*150mm
Loading Weight	Dynamic load:6T / 8T / 10T / 12 T / 15T
Driving	Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control System	Standard 380V English interface
Adjust Scope	+400mm/-300mm
Adjust Time	Up ≤16S ; Down≤10S
Sealing Parts	Brand:NOK A505 Complete set of seals for oil cylinder
Main cylinder	Single cylinder / double cylinders
Main Board Stiffener	8 pcs of 14# I-Beam, the height of Beam is 140mm
Support Rod	Fold at the bottom of the panel
High Pressure Oil Pipe	T3683-2001;60mpa
Side Baffles	Automatic retraction to ensure safety
Hydraulic Oil	32# Antiwear hydraulic oil
Working Pressure of Hydraulic Oil	8Mpa ±1Mpa
Capacity of Hydraulic Oil Tank	5-6L
Working Temperature	-30ºC~+50ºC
Anti-collision Bumper	300*200*100 mm
Base Frame	10#channel steel welded frame structure
Safety Part	Explosion proof valve
Working Frequency	≥200000 times

Remarks:
1. Shanghai XIFEI Door Industry Co., Ltd is a professional enterprise engaged in industrial door design, manufacturing,
sales & installation and after-sales service.
2. The company introduces advanced equipment and technology, design a variety of products according to customer
needs, aims to support customers with high-quality products and professional solutions.
3. The company mainly produce steel door, wood door, fire door, high speed door, sectional door, roller shutter door,
hangar door, logistic docking system and so on.
4. Honors and Certifications:
a. China AAA Enterprise
b. ISO9001: 2000 Management Certification
c. CE Certification

---
