Xe370c Excavator Buckets 40ton Excavator

Product Description

Product Description
Product Parameters

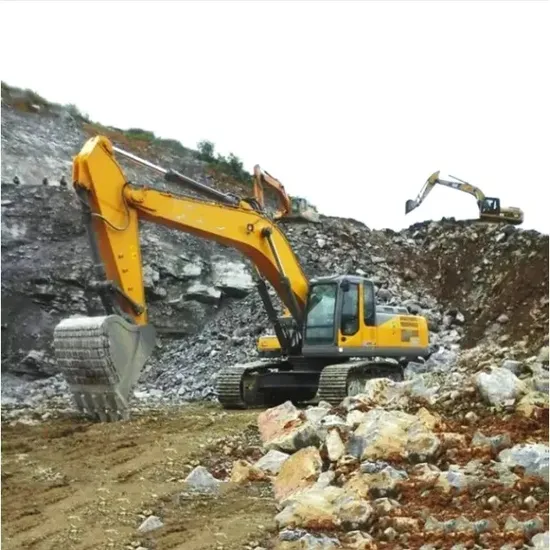

XE370CA hydraulic excavator as a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, tunnels and other harsh construction environment. It has adopted advanced design and manufacturing methods and the latest standards in accordance with the product design concept of "high efficiency, excellent energy saving and outstanding environmental protection", and the ultimate target of "powerful functions, wide scope of applications and creation of more value for customers". Model Characteristics: 1. Ecological and economical * The ISUZU engine with point-type fuel injection technology provides strong power. * The negative flow control system with double-pump confluency realizes efficient operating. * Smart electronic control system can achieve dynamic balance of power and hydraulic system. 2. Multiple applications * Different boom, arm and bucket combinations to maximize utilization of different conditions. * Multi-functional machine system meets various job requirements such' as digging, crushing, and thumb clamp. * ESS microcomputer power control system maintains the best efficiency and economy. 3. Comfortable operational experience * High-performance silicone oil shock absorber improves comfort. * Air Conditioner and Heater ensure the appropriate temperature. * Integrated control panel and large display screen provide multiple information. Description Unit Parameter value

Operating weight	kg	36600
Bucket capacity		1.4 - 1.8
Engine - Model		ISUZU AA - 6HK1XQP
Engine - Direct injection	--	√
Engine - Four strokes	--	√
Engine - Water cooling	--	√
Engine - Turbo - charging	--	√
Engine - Air to air intercooler	--	√
Engine - No. of cylinders	--	6
Engine - Output power	kW/r/min	190.5/2000
Engine - torque/speed	N.m	872.8/1700
Engine - Displacement	L	7.79
Main performance - Travel speed(Hi/L)	km/h	5.4/3.2
Main performance - Gradeability	%	70
Main performance - Rotary speed	r/min	9.6
Main performance - Ground pressure	kPa	66.6
Main performance - Bucket digging force	kN	263
Main performance - Arm digging force	kN	225
Hydraulic system - Main pump	--	KSV160DTH
Hydraulic system - Rated flow of main pump	L/min	2x320
Hydraulic system - Main safety valve pressure	MPa	34.3/37
Hydraulic system - Pressure of pilot system	MPa	3.9
Oil Capacity - Fuel tank capacity	L	630
Oil Capacity - Hydraulic tank capacity	L	320
Oil Capacity - Engine oil capacity	L	28
Appearance size - Overall length	mm	11386/6.4m boom, 11186/6.2m boom
Appearance size - Overall width	mm	3190
Appearance size - Overall height	mm	3530/6.4m boom, 3676/ 6.2m boom
Appearance size - Width of platform	mm	2950
Appearance size - Length of crawler	mm	5035
Appearance size - Overall width of chassis	mm	3190/600 Crawler, 3290/700 Crawler
Appearance size - Width of crawler	mm	600
Appearance size - Wheel base of crawler	mm	4040
Appearance size - Crawler gauge	mm	2590
Appearance size - Clearance under counterweight	mm	1197
Appearance size - Min. ground clearance	mm	500
Appearance size - Min. rear - end swing radius	mm	3570
Working scope (2.71m arm) - Max. digging height	mm	10123
Working scope (2.71m arm) - Max. dumping height	mm	6947
Working scope (2.71m arm) - Max. digging depth	mm	6927
Working scope (2.71m arm) - Max. digging depth at the range of level 8 feet	mm	6709
Working scope (2.71m arm) - Max. vertical wall digging depth	mm	5312
Working scope (2.71m arm) - Max. digging reach	mm	10470
Working scope (2.71m arm) - Min. swing radius	mm	4424
Working scope (2.5m arm) - Max. digging height	mm	9891
Working scope (2.5m arm) - Max. dumping height	mm	6820
Working scope (2.5m arm) - Max. digging depth	mm	6786
Working scope (2.5m arm) - Max. digging depth at the range of level 8 feet	mm	6666
Working scope (2.5m arm) - Max. vertical wall digging depth	mm	4914
Working scope (2.5m arm) - Max. digging reach	mm	10414
Working scope (2.5m arm) - Min. swing radius	mm	4416
Worker - Length of boom	mm	6400
Worker - Length of arm	mm	2670
Worker - Bucket capacity		1.6
Worker - Length of arm	mm	2900/3200/4000
Worker - Bucket capacity		1.4/1.5 rock 1.8 earth bucket

We offer you all kinds of excavator accessories for sale, such as excavator buckets, quick connectors, bucket teeth, long arm/arm and OEM track chassis, excavator complete machines, loaders, cranes, forklifts, etc. We have more than 5 years of export experience. You can buy all our products at once. Just tell us the excavator model and we will provide you with the perfect match.
We specialize in the production and sales of bucket attachments for renowned brands such as Caterpillar, Komatsu, Sany, XCMG, SDLG, Lingong, Lovol, Shantui,SHANTUI HEAVY, Zoomlion, and others. Our product range encompasses bucket specifications ranging from 0.3 cubic meters to 8.0 cubic meters, catering to the assembly requirements of excavators ranging from 6 tons to 125 tons. Additionally, we offer tailored solutions for 5-ton and 6-ton loaders' attachment requirements.

TYPE	MATERIAL	APPLICATION	Service
Bucket (GP)	Q345	Mainly used for excavation and sand, gravel and soil and other light load operating environment.	OEM & Customized service
Bucket (HD)	Q345+NM400	Mainly used for digging hard soil, mixed with a relative soft stone and clay, softer stones and other light load operating environment.
Bucket(HDR)	Q345+NM400 /HARDOX400	Used for mining hard gravel mixed with hard soil, sub-hard stone or flint, after blasting or loading, and heavy-loading.

Bucket Type	Usage
Mining Super Rock Bucket	Used in mining operations with partially blasted, high-density rock materials.
Rock Bucket	Used for loading crushed stones after blasting.
Reinforced Bucket	Used in mining and construction sites with hard objects like mixed stones in debris and soil.
Standard Bucket	Used for excavator loading in earthworks.
Cleaning Bucket	Used for dredging rivers, loading light materials; slightly larger in capacity.
Heavy-duty Grapple Bucket	Used for material sorting in quarrying operations; grid size adjustable based on material size.
Light-duty Grapple Bucket	Used for clearing debris in rivers; slightly larger in capacity.
Cleaning Bucket	Used for dredging rivers, loading light materials; similar to the first cleaning bucket.
Tilting Bucket	Based on the cleaning bucket, equipped with a leveling slope for river dredging and leveling operations.
V-shaped Bucket	Used for excavating trenches, customizable in size for one-pass trenching.

Brand	Application
Komatsu	PC20-7	PC30	PC30-3	PC30-5	PC30-6	PC40-7	PC45	PC55
	PC120-6	PC130	PC130-7	PC200	PC200-1	PC200-3	PC200-5	PC200-7
	PC200-8	PC210-6	PC220-1	PC220-3	PC220-6	PC220-7	PC220-8	PC202B
	PC220LC-6	PC220LC-8	PC240	PC300	PC300-3	PC300-5	PC300-6	PC300-7K
	PC300LC-7	PC350-6/7	PC400	PC400-3	PC400-5	PC400-6	PC400lc-7	PC450-7
	PC600	PC650	PC750	PC800	PC1100	PC1250	PC2000
HITACHI	EX40-1	EX40-2	EX55	EX60	EX60-2	EX60-3	EX60-5	EX75
	EX100	EX110	EX120	EX120-1	EX120-2	EX120-3	EX120-5	EX200-1
	EX200-2	EX200-3	EX200-5	EX220-3	EX220-5	EX270	EX300	EX300-2
	EX300-3	EX300-5	EX300A	EX330	EX370	EX400-1	EX400-2	EX400-5
	EX450	ZAX30	ZAX55	ZAX200	ZAX200-2	ZAX330	ZAX450-1	ZAX450-5
	ZX110	ZX120	ZX200	ZX200	ZX200-1	ZX200-3	ZX200-5g	ZX210
	ZX210-3	ZX210-3	ZX210-5	ZX225	ZX240	ZX250	ZX270	ZX330
	ZX330	ZX350	ZX330C	ZX450	ZX50
Caterpillar	E200B	E200-5	E320D	E215	E320DL	E324D	E324DL	E300L
	E320S	E320	E320DL	E240	E120-1	E311	E312B	E345
	E324	E140	E300B	E330C	E120	E70	E322C	E325
	E325L	E330	E450	CAT225	CAT312B	CAT315	CAT320	CAT320BL
	CAT330	CAT322	CAT245	CAT325	CAT320L	CAT973
Sumitomo	SH120	SH120-3	SH200	SH210-5	SH200	SH220-3	SH220-5/7	SH350-5/7
	SH220	SH280	SH290-7	SH260	SH300	SH300-3	SH300-5	SH60
	SH430
KOBELCO	SK120-6	SK120-5	SK210-8	SK210LC-8	SK220	SK220-1	SK220-3	SK200
	SK200	SK200	SK200-3	SK200-6	SK200-8	SK200-5/6	SK60	SK100
	SK230	SK250	SK250-8	SK260LC-8	SK300	SK300-2	SK300-4	SK320
	SK330-8	SK330	SK350LC-8	SK235SR	SK450	SK480	SK30-6
DAEWOO	DH200	DH220-3	DH220	DH220S	DH280-2	DH280-3	DH55	DH130
	DH370	DH80	DH500	DH450	/DH225
HYUNDAI	R60-5	R60-7	R60-7	R80-7	R200	R200-3	R210	R210-9
	R210LC	R210LC-7	R225	R225-3	R225-7	R250	R250-7	R290LC
	R290LC-7	R320	R360	R954
KATO	HD512	HD1430	HD 512III	HD 820III	HD820R	HD1430III	HD700VII	HD250SE
	HD400SE	HD550SE	HD1880
DOOSAN	DX225	DX225LCA	DX258	DX300	DX300LCA	DX420	DX430
VOLVO	EC160C	EC160D	EC180B	EC180C	EC180D	EC210	EC210	EC240B
	EC290	EC290B	EC240	EC55	EC360	EC360B	EC380D	EC460B
	EC460C	EC700	EC140	EC140B	EC160B

related products:
Certifications
Packaging & Shipping
FAQ

1,Q. How long for your delivery time? A. It will take about 15-35days to finish an order, but the exact time is according to actual situation. 2,Q. Can you offer OEM or design services? A. Yes, we have our own design department. We can make OEM products according your requirements. 3,Q.How long is the warranty? A. 1 year

---
