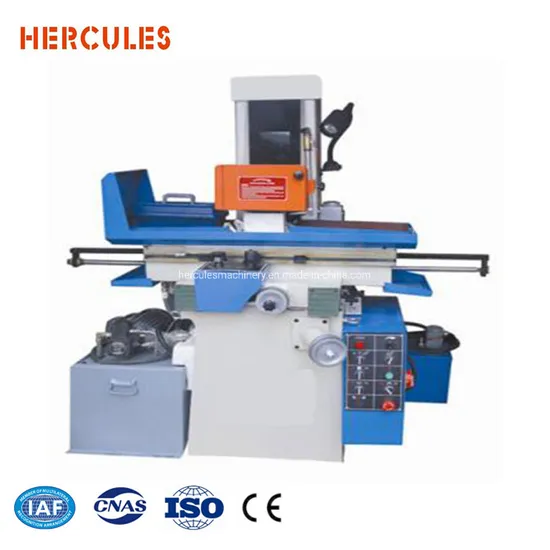

| Specification | Unit | MY618 |
| Table size(L×W) | mm | 460x180 |
| Max.travel of table | mm | 500x190 |
| T slots(Width×No.) | mm | 12×1 |
| Distance from spindle center to table surface | mm | 450 |
| Wheel size(dia×width×bore) | mm | 200x20x31.75 |
| Max.Spindle speed | rpm | 335 |
| Table longitudinal speed(X axis) | m/min | 3-23 |
| Table horizontal the amount of feed(Y axis) | Continuous | mm/min | 150 |
| Intermittent | m/min | 0-5 |
| The handwheel rotates | mm | 2.5 |
| Hand wheel each grid | mm | 0.02 |
| Vertical feed wheel feed | The handwheel rotates | mm | 1.25 |
| Hand wheel each grid | mm | 0.01 |
| Spindle motor | Kw | 1.5 |
| Coolant pump | W | 40 |
| Hydraulic motor | Kw | 1.5 |
| Working pressure | Mpa | 3 |
| Fuel tank capacity | L | 80 |
| The maximum flow | L/min | 18 |
| The machined surface of the base of parallelism | mm | 300/0.005 |
| Surface roughness | μm | Ra0.32 |
| Machine weight | kg | 810 |
| Packing weight | | kg | 850 |
| Packing size(LxWxH) | | mm | 1700x1250x1900 |
| Hercules Machinery Equipment Ltd. |
