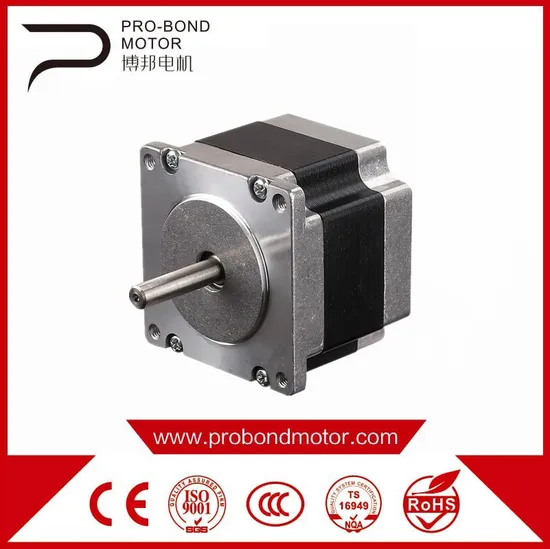

1.8 Degree 4.2A 2.8nm 4 Wires NEMA23 Stepper Motor

Product Description

1.8 degree 4.2A 2.8Nm 4 wires Nema23 stepper motor

57BYG Hybrid Step Motor
Basic Info
Item			Data
Step Angle			1.8°
Tem Rise			60K max
Working Tem			(-20ºC~+70ºC)
Insulation Resistance			100MΩ min 500VDC
Surge Test			500VAC for 1min
Radial Clearance			0.O2max(450g load)
Axial Clearance			0.O8max(450g load)
Max Radial Pressure			15N(20mm from the flange)
Max Axial Pressure			75N
Insulation Class			E

The specification of 1.8 degree 4.2A 2.8Nm 4 wires Nema23 stepper motor

PN	Rated Voltage	Step Angle	Length	Current	Resistance	Inductance	Torque	Lead wire QTY	Positive inertia	Weight
	V DC	(°)	(L)mm	A	Ω	mH	mN.m	No.	g.cm²	g
57BYGH018	6.9	1.8	20	0.6	11.5	23	580	4	135	430
57BYGH117	5.1	1.8	20	0.6	8.5	125	480	4	185	490
57BYGH127N	6.1	1.8	20	0.6	10.2	18.5	480	4	185	490
57BYGH216	5.1	1.8	20	0.6	8.5	10	500	4	209	515
57BYGH312E	5.3	1.8	20	0.6	8.8	27	900	4	253	615
57BYGH413	4.5	1.8	20	0.6	7.5	15	760	4	281	680
57BYGH601	4.8	1.8	20	0.4	12	28	840	4	371	970
57BYGH501	4.8	1.8	20	0.4	12	38	1000	4	506	1050
57BYGH702	4.4	1.8	20	0.3	14.5	52	920	4	573	1100

The above parameters for the conventional specifications, the specific requirements can be customized according to customer requirements.
Term of trade

Terms of price	FOB,CIF,CFR,EXW,DDP,etc.
Terms of payment	100% T/T in advance for samples
	Bulk quantity payment way can be negotited
Warranty	12 months limited warranty once the items are delivered to the buyer.
Lead time	Usually within 2 weeks for trial orders, within 3 weeks for bulk orders.
Package	Carton o plywood pallet.
Place of loading	Shanghai, Ningbo, etc.
Shipment carrier	Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders.
Delivery time	Usually within 5 working days by Express 15-30 working days by vessel

About Probond company
Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements.
Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications.
Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others.
Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price.
Our promise to our Customers:
1. Answer customer's inquiry within 2 working days.
2. Reply to our customer questions & Concerns within 3 working days.
3. Acknowledge Customer purchase orders within 24 hours.
If you have any inquiry, pls feel free to contact with us. Thank you.

---
