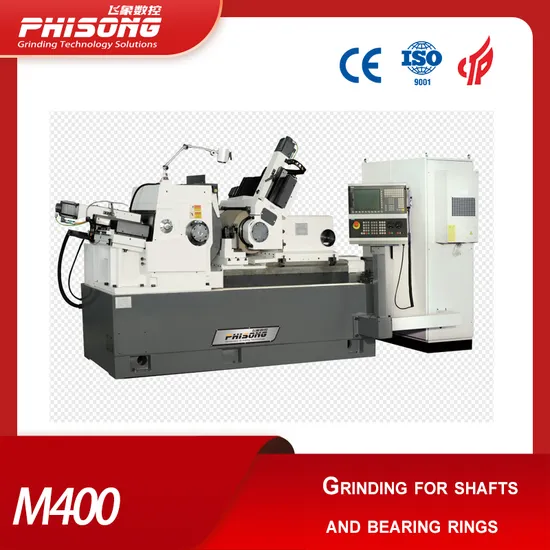

Centerless Grinding Machine Wide Wheel 400ml Grinder for Long Bars, Bearings

Product Description

Product Description
1.1Machine Body Casting, natural aging and artificial heat treatment for reasonable deformation and better durability

1.2 GW and RW(Regulating wheel)
GW is 600mm in diameter, 400mm wheel width.
GW fixed on machine bed, double supported structure , with better reliability and stability.
RW and GW spindle double supported structure, double row cylindrical roller bearings, rotary accuracy assured.
1.3 Feeding Schneberg brand high rigidity linear guide-rail for motion sensitivity, easy micron feed, vibration resistance, and
anti-fraying
Servo motor drives ball-screw through shaft coupling, min. feeding amount 0.001mm.
1.4 Dressing for GW and RW GW dresser: Servo motors drive ball-screws for GW dresser feeding and reciprocating.
RW dresser: Gear motor drives ball screw for reciprocating motion, step-less speed adjusting, hand wheel for dresser feeding
1.5.Electric
Converter for RW motor, step-less speed adjusting.
Operation panel with dials and touch screen for
grinding, dressing,feding, etc. Adjusting.
Mitsubishi PLC control system, Siemens for optional

1.6. Technical Data

		3 Axes
In-feed Grinding	Dia.	10-200mm
	Length	390mm
Through grinding	Dia.	10-200mm
GW SPEC. (O.D.*width*I.D.)		600*400*305mm
RW SPEC.(O.D.*width*I.D.)		350*400*203mm
GW Speed		1100r/min
RW Speed (stepless)		10-300r/min
Swiveling Angle of RW	Vertical	-2°~ +5°
	Horizontal	-1°~ +3°
GW min feeding amount		0.001mm
GW dresser min feeding amount		0.001mm
Height from center line of GW & RW to work rest		200mm
Cooling water flow		200L/min
GW Motor		30kw
RW Motor		3kw
Power Supply		3N 50HZ 380V
Dimension(L*W*H)		3300*1780*1900mm
Machine Weight		About 0.9 tons
Accuracy (standard bars)	Roundness	0.001mm
	Cylindricity	0.0018mm
	Roughness	Ra.0.16μm

1.7.Main Accessories

Name	SPEC.	QTY	Unit	Brand
Control system PLC	Q series	1	set	Mitsubishi
Servo motor		3	set	Mitsubishi
Operation display screen	10'	1	set	Mitsubishi
Ball screw		4	sets	Nanjing
Converter for RW		1	pc	Mitsubishi
RW motor		1	pc	Wannan
GW motor		1	pc	ABB
low-voltage apparatus		1	set	Schneider
Proximity switch		1	set	AUTONICS

Grinding Examples&Operations
Automatic Solution
Company Profile
Jiangsu Phisong CNC machine Co., Ltd., known for it′s professional centerless grinding technology at home and abroad, Phisong CNC inherits and absorbs the essence of the advantages on cylindrical grinding machine, centerless grinding machine design, production and manufacturing industry. Our products are selected by a number of famous Top-500 enterprises and listed companies at home and abroad and exported to countries and regions in Europe & America, Russia, southeastern Asia etc.We presently built offices with modernized environment, process with advanced producing technology, Adopt ISO9001 international quality management system. For different processing requirements, we customized professional processing technology for customers in improving their processing level and production efficiency with concept of professional skill, integrity and enthusiasm.Phisong gathered a large number of professional elites, based on the full range of product quality management, and the employment of senior experts as a long term production technology consultant, with a professional attitude, devoted to product R&D and production. We have a wide range of applications: From micro nozzle needle to high precision pump piston to heavy rail shaft, we continue to develop centerless grinding technology, won the majority of customers′ praise.
FAQ


Certifications
Packaging & Shipping
Company Exhibition&Visiting

---
