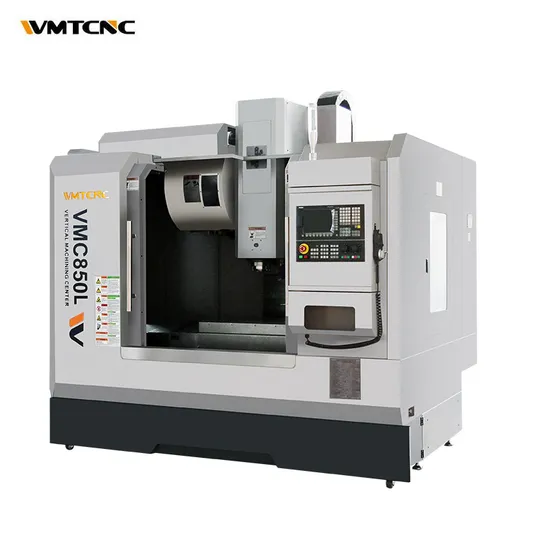

cnc milling machine VMC850L vertical 5 axis cnc machine cnc machining center

Product Description

Product Description
cnc milling machine VMC850L vertical 5 axis cnc machine cnc machining center main application:
1. All 5 axis use class precision screw, match up the nut preloading and screw prestretched, preeliminate backlash and temperature rise, so that the machine can achieve stability of the positioning and repeatability accuracy.
2. Besides, the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors, so that the machine can have high accuracy and long working life.

Specification	VMC850L
Worktable
Worktable size (L×W)	1000×500mm
T-slots size (N×W×D)	5-18x90mm
Travel
X/Y/Z axis travel	800/500/500mm
Machining range
Distance from spindle center to column	550mm
Distance from spindle nose to worktable surface	150-650mm
Spindle
Spindle taper	BT40
Spindle power	7.5kw
Max. spindle speed	8000rpm
Feed
Max. feed speed	10m/min
Rapid feed speed (X/Y/Z)	24/24/20m/min
Ball screw (diameter+lead)
X/Y/Z axis ball screw	4016
Tool magazine
Tool magazine capacity	24T
Max. length of tool	300mm
Tool change time	1.5s
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	±0.005mm
Re-positioning accuracy(X/Y/Z)	±0.003mm
Machine dimension
L×W×H	2750×2300×2300mm
Machine weight
Max. loading of worktable	500kg
Machine weight	5300kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
