Aluminum Alloy Construction Platform Suspended Platform

Product Description

Aluminum Alloy Construction Platform Suspended Platform

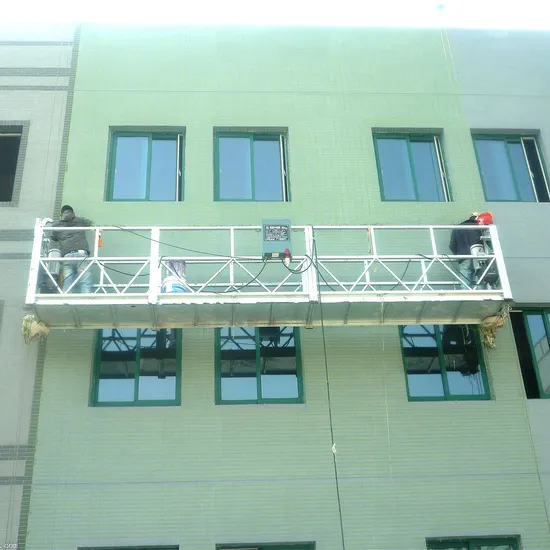

Product Description Aluminum Alloy Construction Platform Suspended Platform is throught the top of suspension mechanism on the roof of buildings, hanging with wire rope along building facades, the motor assembly with two side of gondola and drive the load which inside the gondola up and down. work gondola have a stromg adaptability to construction site, it is always to be used for wall cleaning, maintenance, decoration, windows or other kind glasses cleaning, installation, maintenance or high buildings surface painting works.
We pay all our attention for the Construction work cradle, working construction cradle, hanging construction cradle, construction cradle design and manufacturing. Wall construction cradle for high buildings and windows cleaning A good tools and make work efficiently.
Technical parameters of Aluminum Alloy Construction Platform Suspended Platform

model	zlp500	zlp630	zlp800	zlp1000
appearance	painting/hot galvanized
fabrication material	steel/aluminum alloy
rated load	500kg	630kg	800kg	1000kg
lifting speed	9-11m/min	9-11m/min	8-10m/min	8-10m/min
motor power	2x1.5kw	2x1.5kw	2x1.8kw	2x2.2kw
brake torque	16km	16km	16km	16km
steel rope angle adjusting range	3°-8°	3°-8°	3°-8°	3°-8°
distance between two steel rope	≤100mm	≤100m	≤100m	≤100m
counter weight(optional)	25kgx30pcs	25kgx36pcs	25kgx40pcs	25kgx44pcs
diameter of steel rope	8.3mm	8.3mm	9.1mm	10.2mm
max lifting height(m)	300m	300m	300m	300m
motor rotation speed	1420r/min	1420r/min	1420r/min	1420r/min
voltage(3phases)(optional)	220v/380v/415v/440v 50hz/60hz to be OEM

Products Show
Photos of main parts for Aluminum Alloy Construction Platform Suspended Platform

model	zlp500	zlp630	zlp800	zlp1000
appearance	painting/hot galvanized
fabrication material	steel/aluminum alloy
rated load	500kg	630kg	800kg	1000kg
lifting speed	9-11m/min	9-11m/min	8-10m/min	8-10m/min
motor power	2x1.5kw	2x1.5kw	2x1.8kw	2x2.2kw
brake torque	16km	16km	16km	16km
steel rope angle adjusting range	3°-8°	3°-8°	3°-8°	3°-8°
distance between two steel rope	≤100mm	≤100m	≤100m	≤100m
counter weight(optional)	25kgx30pcs	25kgx36pcs	25kgx40pcs	25kgx44pcs
diameter of steel rope	8.3mm	8.3mm	9.1mm	10.2mm
max lifting height(m)	300m	300m	300m	300m
motor rotation speed	1420r/min	1420r/min	1420r/min	1420r/min
voltage(3phases)(optional)	220v/380v/415v/440v 50hz/60hz to be OEM

Main Parts of Aluminum Alloy Construction Platform Suspended Platform1. construction cradle(basket): Steel or Aluminum Alloy (painted or hot galvanized)2. Suspension Mechanism: Steel (painted or hot galvanized)3. Electric hoists:LTD6.3 or LTD84. Safety Lock: LST305. Electric control box: Along with hoists6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm7. Safety rope: 18mm,20mm8. Electric cable: 3*2.5+2*1.59. Counterweights: Cement , cement with steel cover & Iron counterweight10. Spare parts
Packing and Shipping
Packages Details of Aluminum Alloy Construction Platform Suspended Platform

package	platform	counter weight	hoist & safety lock	control panel & other smallparts
	film	pallet	wooden case	carton box

Our Company
The Aluminum Alloy Construction Platform Suspended Platform can be customized according to customers'requirements(drawing, specifications and so on).
Showing Case
About us
You can get high quality Aluminum Alloy Construction Platform Suspended Platform for high buildings maintanence, windows cleaning, and professional service from us...
