Wtsensor OEM Manufacturer Gold Platted Pressure Sensors for Hydrogen Application

Product Description

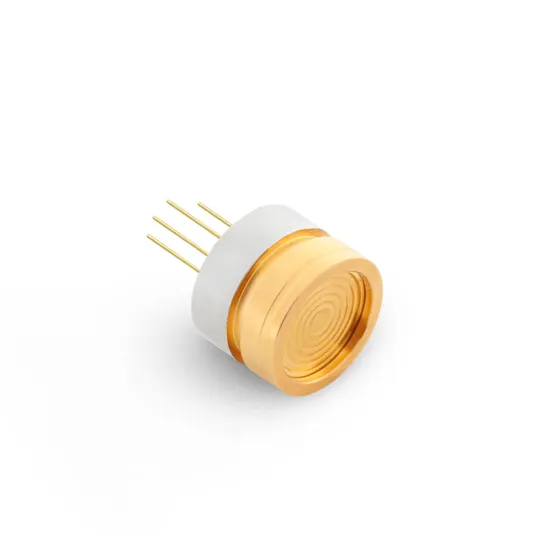

PC10AU Piezoresistive Silicon Pressure Sensor
Product overview
PC10AU piezoresistive silicon pressure sensor is the core component of pressure sensor and pressure transmitter suitable for measuring hydrogen environment, can be easily amplified and assembled into a transmitter with standard signal output. It is protected from hydrogen penetration by diaphragm gilding.
Our company can also undertake special customization according to the needs of users, such as all-welded structure, wide temperature compensation, high reliable pressure sensors, especially for defense weapons equipment.
Product DescriptionHydrogen penetration solution
Coating the base metal with a thin layer of gold protects the film from hydrogen penetration. The 99.9% pure gold coating (thickness of 3um) can eliminate hydrogen penetration without affecting the properties of the product itself.
Features
Wide temperature compensation
Φ19mm standard OEM
All 316L material
Prevent hydrogen
permeability
High performance, all solid, high reliability
18 months warranty period
Applications
Process control systems
Hydraulic systems and valves
Hydrogen measurement
Ships and navigation
Aircraft and avionics system
Hydrogen vehicle
Product Parameters

Electrical performance parameters
Pressure range	100kPa~40MPa
Pressure reference	Gauge pressure | Absolute pressure | Sealed gauge pressure
Excitation	1.5mA recommended for constant current
	10V recommended for constant voltage
Input impedance	Constant current: 2kΩ~5kΩ
	Constant voltage: 3kΩ~18kΩ
Electrical connection	Gold-plated Kovar pin or silicon soft wire
Compensation temp.	Constant current: ≤70kPa 0ºC~60ºC, -10ºC~70ºC(other ranges);
	Constant voltage: -20ºC~85ºC
Operating temp.	-40ºC~120ºC
Storage temp.	-40ºC~125ºC
Insulation resistance	≥200MΩ/250VDC
Response time	≤1ms (up to 90%FS)
Measured medium	Hydrogen
Mechanical vibration	20g (20~5000Hz)
Shock	100g/10ms
Durability	106 pressure cycles
Structural performance parameters
Diaphragm material	316L(gold plating)
Housing material	316L
Oil filling	Silicon oil
Sealing mode	Welded

Basic parameters
Item	Condition	Min	Nominal	Max	Unit	Note
Non-linearity		-0.3	±0.2	0.3	%FS	Note(1)
Hysteresis		-0.05	±0.03	0.05	%FS
Repeatability		-0.05	±0.03	0.05	%FS
Zero output		-2	±1	2	mV
Full scale span output	1.5mA 10V	60 98	90 100	150 102	mV
Zero temp. coefficient		-1.5	±0.75	1.5	%FS	Note(2)
Span temp. coefficient		-1.5	±0.75	1.5	%FS	Note(2)
Thermal hysteresis		-0.075	±0.05	0.075	%FS	Note(3)
Long term stability		-0.3	±0.2	0.3	%FS/Year

Note:
(1) Calculate according to BFSL least square method.
(2) In the compensation temperature range, 0ºC~60ºC and -10ºC~70ºC, reference temperature 30ºC.
(3) After passing high and low temperature, return to the reference temperature.
Company Profile
Certifications:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on pressure sensor for 33 years.
2. Q: What international certificates do you have?
A: ISO9001, CE, RoHS Certificated.
3. Q: What is your production capacity?
A: We produced 1500000 pieces pressure sensor in year 2017.
4. Q: What is the lead time of your product?
A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
Note: lead time may vary base on different products. Please contact us for detailed lead time.
5. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
6. Q: Do you provide customized products?
A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.

---
