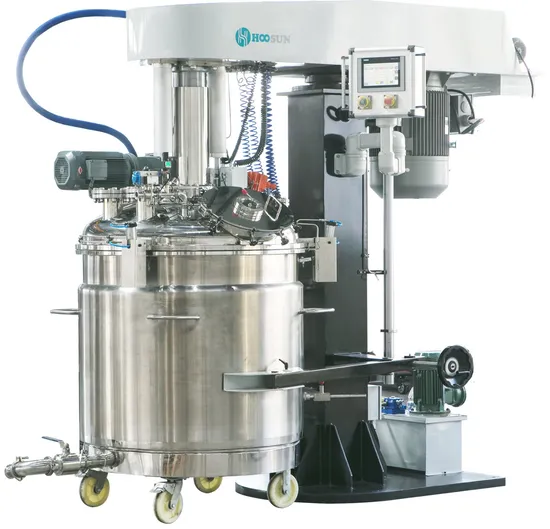

High Speed Dissolver Gear Agitator Tank Production Line

Product Description

Basic Info.

Model NO.	HSDH	Mixer Type	Agitator
Working	High Speed Mixer	Stirring Type	Diving
Application	Liquid with Suspended Solids, Liquid	Application Area	Fine Chemicals
Layout Type	Verticle	Mixing Drum Shape	Disc
Operating type	Cycle Operating	Condition	New
Voltage	380V/50Hz, Can be Customized	Motor	Siemens or ABB Brand
Material Viscosity	Less than 50000cps	Accessory	with Cover, Clamping Device
Trademark	Hoosun	Origin	China
HS code	84798200	Production Capacity	1-2000L

Product Description Introduction High speed disperser is applied in mixing,blending and dissolving liquid-liquid or liquid-solid materials. It accelerates the blending and dissolving, forming a stable fluid in short time. The high speed disc blade rotates at high speed, dispersing and mixing materials completely. -the paste is in annular flow which creates strong vertex. Surface particales drop to the bottom. -and forms a turbulent flow at the disc edge. Paste and particles are highly sheared and impacted -two beams formed outside the area. The paste is fully circulated and stirred. - there is a laminar flow under the blade. Paste in different speed interdiffuse and get disperserd. Details

Model	Power(kw)	Speed(rpm)	Capacity(L)	Disc Dia.(mm)	Stroke(mm)
HSDH-2.2	2.2	0-1440	50-150	150	600
HSDH-4	4	0-1440	20-200	200	900
HSDH-7.5	7.5	0-1440	100-300	250	900
HSDH-15	15	0-1440	100-500	300	900
HSDH-22	22	0-1440	100-1000	350	1100
HSDH-30	30	0-1440	200-1200	400	1100
HSDH-37	37	0-1440	300-2000	400	1600
HSDH-45	45	0-1440	500-2000	450	1600
HSDH-55	55	0-1440	600-2500	500	1600
HSDH-75	75	0-960	≤4000	550	1800
HSDH-90	90	0-960	≤6000	600	1800
HSDH-110	110	0-960	≤8000	700	2100

Note: The above details is tested with water. Specificions will differ according to the materials property and requirements. Company Profile
Hoosun Workshop
Exhibition
Production Line Projects
CE & ISO certification
Signing Ceremony & After-sales service
Our Customers FAQ
Q1: How do l order?A: Make an inquiry to us →Inform us of the use scenario → Receive our product design recommendation→Discuss details→Confirm sample → Sign contract/deposit→ Mass production →Goods ready -→Balance/delivery →Further cooperation.Q2: What about your warranty?A: First of all, before dellvery, our in-house QC will do a comprehensive inspection to show the condition of the goods by testing operation or trial operation. Secondly, our warranty is 12 months from the time of arrval. If the equipment fail, such as the motor, reducer or inverter is damaged, we will replace and repair it free of charge. In case of damage caused by operational error, we will provide technical guidance to customers.Q3: How about your after-sales service? What should I do if something goes wrong during use?A: Whether it is under warranty or not , we will first help you figure out the essence and solve the problem through video conferencing. lf it is under warranty, no doubt we will take care of the problem and provide a new replacement free of charge. If it exceeds the warranty period, we will replace it for you with it cost price, find the most favorable mode of transportation, thereby solving the problem, maximizing your cost savings at the sametime, and provide lifelong maintenance advice and technical guidance.Q4: What are your company's strengths? Because l see that most of the products look very similar.A: Yes , you're right. Similarity of appearance is a problem.In this matter,we mainly do two aspects of work: firt, to ensure the quality of products; in the other hand, improve the professional quality of sales representatives, improve their communication skills, and provide customers with more additional value beyond the product.
Q5: How can l trust you? After all, this is our first cooperation, but I must give you the money before you ship the goods.A: Yes, it's really not easy to choose a reliable supplier among so many suppliers.Because you may have to consider many factors, such as quality safety, price, delivery after-sales service and so on. But don't worry, our company has more than 12 years of experience in this field and we have taken all the factors into consideration for you.
The only thing you need to think about is how to continue to grow in your market, and we'll do the rest.Q6: Can it be customized?A: Yes, the equipment can be customized according to customers' requirements.

---
