| US$15,000.00-20,000.00 | 1 Piece (MOQ) |
| Working wide | 2800mm | |
| Paper diameter | MAX: 1500mm MIN:300mm | |
| Paper width | MAX: 2850mm MIN:800mm | |
| Weight capacity | 3.5T | |
| Paper head size | Teeth 3 inches 4 inches | |
| brake | Spur gear type more points pneumatic | |
| Working air pressure | 0.4---0.8Mpa |

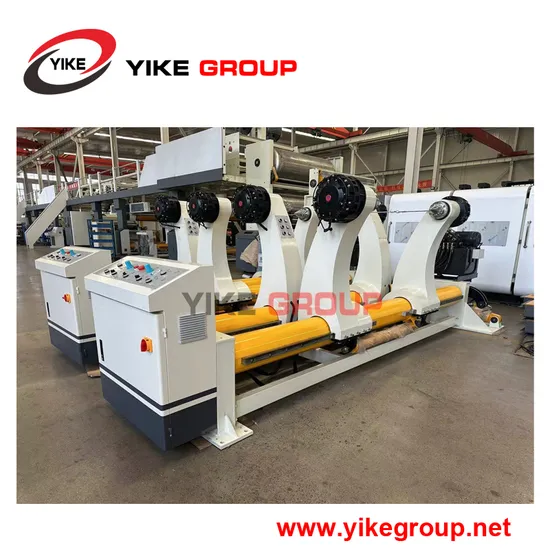

| 1 Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive. 2 The brake uses a multi-point brake system, a gear disc structure, equipped with a cooling fan, Yadeke pneumatic components, stable tension, and long life. 3 The large-diameter spindle design, the swing arm slides smoothly, and the steel guide rails are treated with high frequency treatment, which is super wear-resistant. 4 The hydraulic cylinder is installed on a twisted shaft, which does not bear radial force and is easy to maintain. |
| Working pressure | Hydraulic cylinder working range | Hydraulic cylinder working range | Hydraulic station motor power | Solenoid valve working voltage |
| 16---18Mpa | ¢125×360mm | ¢80×850mm | 4KW --380V -- 50Hz | 220V--50 Hz |
| Serial number | Name of main parts | Brands or place of origin | Remarks |
| 01 | Main shaft | Day steel production | ¢270mm |
| 02 | Swing arm | Production by own | Resin sand gray ironHT250 |
| 03 | Wallboard | Jigang prduction | Q235AWelding parts |
| 04 | Bearing | C&U | |
| 05 | Main electrical appliance | SIEMENS | Contactor, relay, button |
| 06 | Hydraulic station | 7 Ocean | Taiwan oil pump solenoid valve |
| Track length | 10000mm | |
| Paper loading method | Paper on hydraulic clamp | |
| Main frame | 18 channel steel and ¢20mm cold drawn round steel |
| 1 On the double position paper on design, hydraulic clamp for paper, paper unloading hydraulic push rod save manpower, hydraulic motor traction feeding trolley. 2 Track buried whole, the main frame of the 18th channel, beam and ¢ 20mm drawing bar welding. 3 Each paper Paper holder with both the car from both sides of the paper simultaneously. |
| Serial number | Name of main parts | Brands or place of origin | Remarks |
| 01 | Track and paper trolley | Tanggang or Jigang | NO18 channel steel,Q235A,steel strip |
| 02 | Bearing | C&U |
| 1 The maximum diameter of the applicable paper:1500mm. 2 With the automatic tension control of the original paper holder, the paper can be picked up at high speed and the success rate is high. 3 No tail paper receiving, reducing paper consumption (only partially overlapping paper tape with a width of 40mm). 4 When paper car take out, the automatic turn out, and the vacuum adsorption, easy paper loading, automatic tension control paper receiving zero turnovers. 5 All PLC automatic control, accurate, less failure, easy maintenance. 6 The first round of the buffer when you pull the paper, automatic alignment, easy to pull paper. 7 Machine superiority cylinder control speed splicers paper receiving moment does not appear normal motor control of rubble, blistering. 8 Paper receiving highest speed of 250 m / min. |
