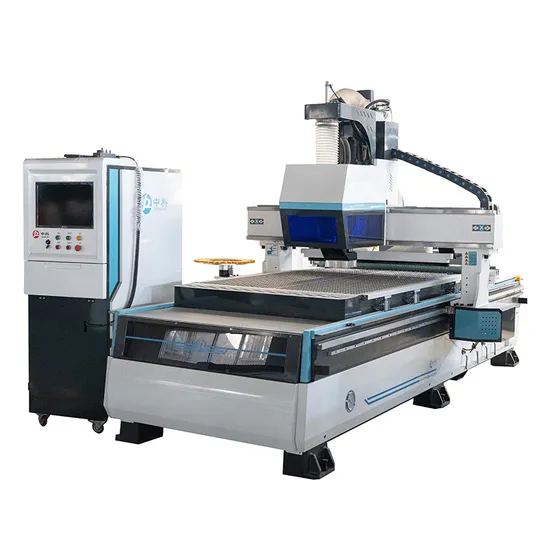

1325 2030 Atc Woodworking CNC Carving Cutting Machine for Furniture

Product Description

Product Description
The 4x9 Furniture making machine is an ATC CNC Router with an auto tool changer, CNC boring head with the function of drilling and saw cutting. This Furniture making machine is also has additional function for loading, feeding, and unloading working. So this is a big improvement for automatic woodworking and furniture processing plants.

Detailed Photos
Vacuum pump Tool keys and tool box dust collector

Product Parameters

Model	1328 model auto tool changing cnc router machine
X,Y axis travel	1300x2800mm
Z axis travel	200mm
Spindle	HQD9.0KWATC air cooling spindle
Inverter	11kw Fuling inverter
Tool magazine	20 pieces carousel type auto tool changer Option: linear type auto tool changer
Tool holder with collet	ISO30,ER32 collet:φ4,φ6,1/8,1/2
Control system	Shanghai WEIHONG control system
Driving system	Shanghai WEIHONG 1000W servo motor and drivers,
Reducer	Japan Shimpo reducer
Machine structure	Heavydutywelded steel frame
Working Table	Full-page vacuum working table
Linear guide	TaiwanLinear guide
Transmission	X,Y axis: Taiwan Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw
Lubrication system	1.5L Autolubrication system
Tool Calibration	Auto tool sensor
Cables	Germany Igus cables with CE,cUL certificate
Compatible Software	Artcam, Hisoon,etc
Command Language	GCode
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioningaccuracy	±0.03mm
Working accuracy	±0.03mm
Working voltage	220V/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Certifications
Packaging & Shipping
optional functions
Auto loading table function is optional
Auto unloading table function is optional
Auto labeling machine is optional
After Sales Service
We provide 12 months warranty for the machine.Consumable parts will be replaced free during the warranty
Our engineer could provide technical support and trainingfor you in your country, if necessary.
Our engineer could service for you 24 hours online, byWhatsapp, Wechat, QQ, or by cellphone, etc.
