Product Description
Product Description

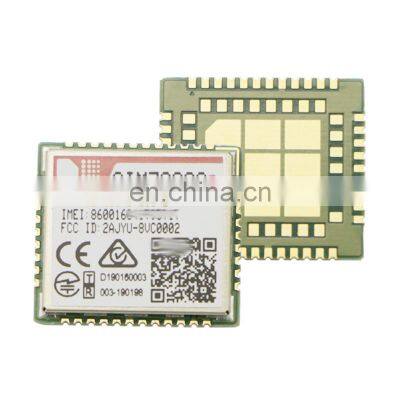

DescriptionCAT-M&NB-IoT Module-• The SIM7080G is Multi-Band CAT-M and NB-IoT module solution in a SMT type .-• It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.-• It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, the SIM7080G module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..-Product Advantages• With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7080G can extend battery life to 10 years.• CAT-M, NB-IoT dual mode• The package of SIM7080G is compatible with SIM868-General Features• Support Bands:• CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/ B18/B19/B20/B25/B26 /B27/ B28/B66/B85• CAT-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B26/B28 /B66/ B71/B85• LTE RF Power Class: 5 (Typ. 21dbm)• Control Via AT Commands• Supply voltage range: 2.7V-4.8V• Operation temperature: -40°C to +85°C• Dimensions: 17.6 X 15.7 X 2.4 mm• Weight: 1.4g±0.2g -Date• Cat-M: Uplink: 1119Kbps Downlink:589Kbps• NB-IoT: Uplink: 150Kbps Downlink:136Kbps-Other Features• TCP/UDP• HTTP/HTTPS/TLS/DTLS/PING/ LWM2M/COAP/MQTT• Ayla Cloud• Firmware update via USB• FOTA• EAT -Interfaces• UART• SIM card• PCM/I2S/SPI• I2C• GPIO• ADC• USB• Embedded SIM (optional)• Consumption• PSM: 3.2uA• Sleep: 0.6mA @PTW=40.96s eDRX=81.92s• Idle: 10mA -Certifications(plan)• FCC/IC/CE/RCM/JATE/TELEC GCF/PTCRBSoftBand/DoCoMo/KDDI RoHS/REACHWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All CategoriesWireless ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIM Card HolderSensorIC
>>
