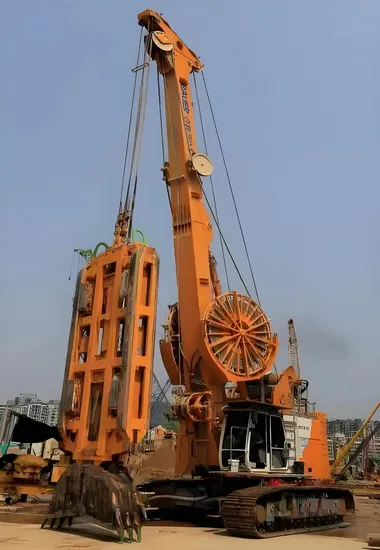

80 Ton Hydraulic Grab Machine for Efficient Material Handling

Product Description

Type		Units	Data
Wall depth		m	105
Wall thickness		mm	600~1500
Max. Pull-down piston pull		kN	2X300
Max. pul/push speed		m/min	40
Grab opening time		sec	5
Grab closing time		sec	5.4
Hydraulic system pressure		MPa	33
Work radius		mm	4600~5800
Engine	Model		QSM11
	Rated Power	kW/rpm	298/2100
Undercarrige	Max. taveling speed	km/h	1.5
	Max. grade ability	%	35
	Min. Clearance	mm	450
	Track shoe width	mm	800
	Distance between tracks	mm	3500~4900
Dimension	Working condition	mm	11650*4900*18910
	Transportation condition	mm	16120*3500*3800
Overall diling weight		t	120

a premier professional enterprise dedicated to the exportation of top-tier construction machinery. We take immense pride in distributing an extensive range of high-quality, China-made construction equipment to the global market.
Our company has established long-lasting partnerships with industry-leading brands such as Xugong, Trinity, ZhongLian, Liugong, Shantui, Doosan, Dotano, Carter, Kobelco, Kato, Groff, Hyundai, and many more, ensuring we provide only the best.
Our export portfolio features a comprehensive assortment of construction machinery products, including truck cranes, crawler cranes, loaders, excavators, rollers, pavers, milling machines, graders, bulldozers, excavator loaders, horizontal directional drills, rotary digging drills, hydraulic grabs, and more. With over 20 categories and a total of more than 500 product types, we proudly serve over 100 countries and regions across five continents. Our primary markets include South America, Africa, the Middle East, and Southeast Asia.
Frequently Asked Questions
Q1.
What are your company's strengths
?
A1. Our team has over a decade of expertise in the construction machinery and commercial vehicles sectors. Utilizing our proprietary platform and centralized procurement system, we provide high-quality, competitively priced spare parts across numerous categories. Moreover, we manage multiple distribution centers and work with overseas parts agents, establishing ourselves as a holistic service and parts provider.
price. And we have several distribution center and overseas parts agent, acting as an integrated service and parts provider.
Q2
:
What logistics methods can you use for shipment
?
A2
:
We offer a wide range of transportation options for delivering construction machinery and commercial vehicles. These include containers, ro-ro/bulk transportation, trucks, or trains. For lighter parts, we ensure efficient and tailored logistics solutions to meet your needs.
.
Q3
:
Will you deliver the right goods as ordered? How can I trust you?
A3: Absolutely. Honesty, professionalism, and trustworthiness are the core values upon which our company is built. Since our inception, Yituo has consistently earned the trust and confidence of our dealer partners.
Yituo has become a trusted partner of dealers since its establishment.
Q4
:
What are your company's payment methods
?
A4
:
We accept TT, L
/
C.
Q5
:
What are your shipping terms?
A5
:
We offer flexible shipping terms, including FOB, CNF, and CIF, to accommodate your needs.

---
